Retrofitting CD changer - AZ82.64-P-0001IA: Notes

MODEL 220 with CODE (750a) MB radio Audio 30 RDS with CODE (753) MB radio Audio 30 RDS with CODE (756a) MB radio Audio 10 RDS with CD compartment with CODE (352a) COMAND operating and display system without further special equipment

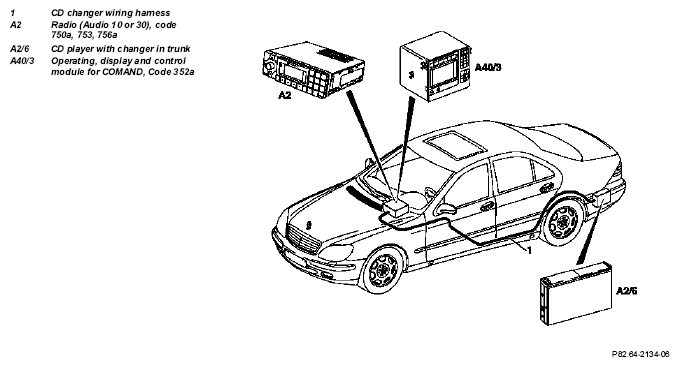

Fig 1: Identifying CD Changer Components Location - Model 220

	Notes on fiber optic cable	Model 129, 168, 170, 202, 208, 210, 220	AH82.70-P-0001-02A
	Removal
1	Disconnect ground cable of battery
			AR54.10-P-0003I
2.1	Remove radio
			AR82.60-P-7502I
2.2	Removing and installing operating/display unit with control module	with COMAND (code 352a) operating and display system
			AR82.85-P-7472I
3	Remove floor covering in rear compartment
			AR68.20-P-4800M
4	Open left cable duct
5.1	Remove rear seat backrest
			AR91.12-P-1620MA
5.2	Remove rear seat backrest	with bucket seats (code 401), left side only
			AR91.12-P-1620M
6.1	Remove seat adjuster	with bucket seats (code 401), left side only
			AR91.10-P-1450M
7	Remove left side paneling in trunk	Paneling on left is eliminated part.
			AR68.30-P-4600M
8	Remove rear wall in trunk
	Installation
9	Install fiber optic cable module
			AR82.70-P-0004-01A
10	Retrofit CD changer wiring harness		AZ82.64-P-0001-01IA
	Cover fiber optic cable	Do not kink or stretch D2B fiber optic cable.  Install cover caps on fiber optic cable connector and equipment connection.	AR82.95-P-0005-01A
11	Retrofit CD changer in trunk		AZ82.64-P-0001-05IA
12	Install left side paneling with CD changer cover
13	Installation is carried out in reverse order	Steps 1, 2, 3, 4, 5, 6, 7, 8.
14	Carry out start-up and function test	Perform version coding (CD changer) with STAR DIAGNOSIS
15	Enable radio
16	When modifying package code or designation of concerned special equipment, enter on vehicle card
