Remove/install radio - AR82.60-P-7502I

MODEL 220 up to 31.8.02 with CODE (750a) MB radio Audio 30 RDS with CODE (753) MB radio Audio 30 RDS with CODE (756a) MB radio Audio 10 RDS with CD compartment

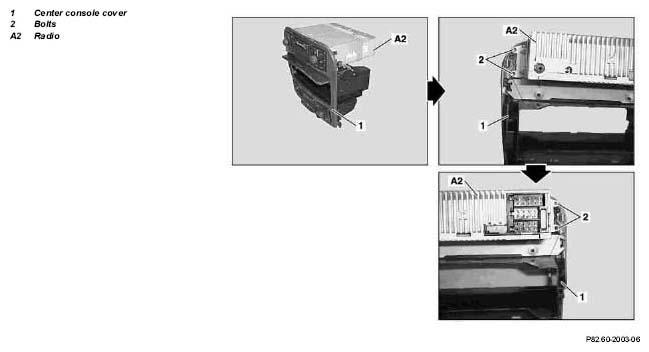

Fig 1: Identifying Center Console Cover, Bolts And Radio

	Remove/Install
1	Connect no load current retention unit		AR54.10-P-1030-07I
		CMP 12.2 quiescent current retention unit	*WH58.30-Z-1012-09A
	Risk of explosion  caused by explosive gas. Risk of poisoning and caustic burns  caused by swallowing battery electrolyte. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear protective gloves, acid-resistant clothing and safety glasses. Pour battery electrolyte only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
2	Disconnect ground cable of battery		AR54.10-P-0003I
	Notes on battery		AH54.10-P-0001-01A
	Notes on AGM battery	Model 220.028 with CODE (450) Taxi version. Models 220.070/075/175/178/875/878 as of 1.1.01.	AH54.10-P-0002-01A
3	Remove center console cover (1)		AR68.20-P-2350M
4	Undo screws (2) and remove radio (A2) from the center console covering
5	Install in the reverse order
6	Test for proper operation
