Retrofitting TrafficStar navigation system - AZ82.61-P-0001I
MODEL 163 up to 30.6.99 except CODE (819) 6-disk CD changer in trunk

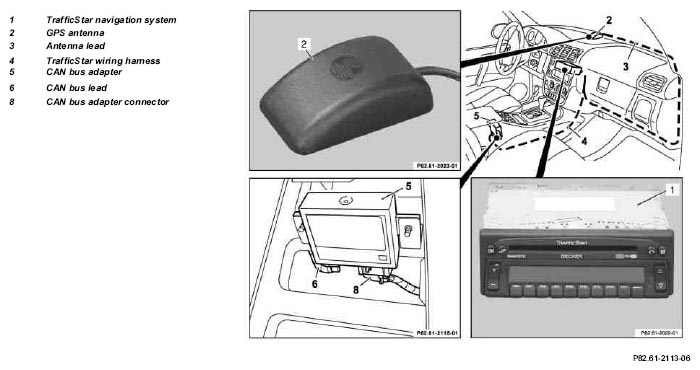

System illustration
| Notes on TrafficStar navigation system | Models 129, 140, 163, 168, 170, 202, 208, 210 | AH82.61-P-0001-03A | |
| Removal | |||
| 1 | Disconnect ground lead from battery | ||
| AR54.10-P-0003A | |||
| 2 | Remove radio | ||
| AR82.60-P-7502EA | |||
| 3 | Remove center console | ||
| AR68.20-P-2000GH | |||
| 4 | Remove cover below right instrument panel | ||
| AR68.10-P-1520GH | |||
| 5 | Remove paneling from A-pillar | ||
| AR68.30-P-4050GH | |||
| Installation | |||
| 6 | Retrofit TrafficStar GPS antenna on instrument panel | AZ82.61-P-0001-01F | |
| 7 | Connect TrafficStar radio and navigation system | AZ82.61-P-0001-02G | |
| AZ82.61-P-0001-02I | |||
| 8 | Reassemble vehicle, 5-1 | ||
| 9 | Carrying out start-up and function check | AZ82.61-P-0001-04A |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| B6 782 2500 | TrafficStar navigation system parts kit | 1 |
| B6 782 2514 | TrafficStar navigation system with precious wood finish, burr walnut veneer | 1 |
| B6 782 2519 | CAN bus adapter parts kit | 1 |
| B6 782 2595 | TrafficStar wiring harness with sound system | 1 |
| B6 782 2594 | TrafficStar wiring harness without sound system | 1 |
| B6 782 2596 | CAN bus wiring harness | 1 |
