Remove/install cover below instrument panel (right) - AR68.10-P-1520GH

MODEL 163.136 /154 /172 #A up to 145272,163.136 /154 /172 #X up to 708318

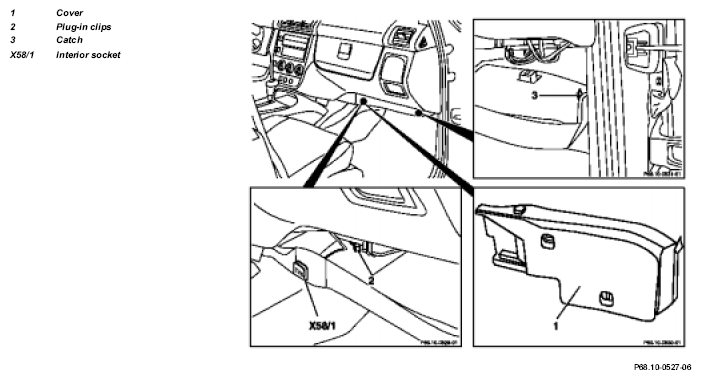

Fig 1: Identifying Cover Below Instrument Panel (Right)

	Remove/Install
1	Unhook catch (3) on blower motor	Risk of breakage!
2	Unclip cover (1)	Cover is fastened with 2 clips (2).
3	Disconnect electrical connector from interior socket (X58/1)
4	Install in the reverse order
