Carry out distance and comparison measurements on front and rear axles - AR40.30-P-0402A

MODEL 129, 170, 202, 208

Front axle

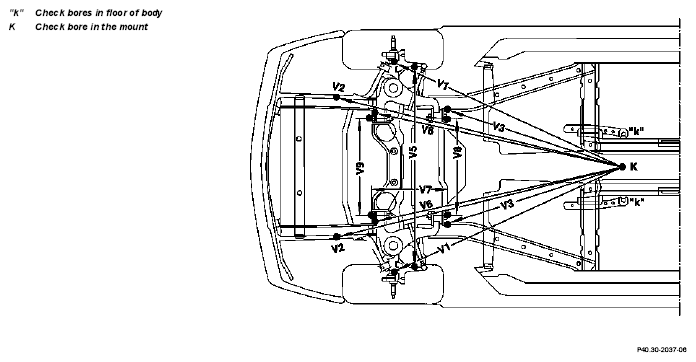

Fig 1: Identifying Distance And Comparison Measurements On Front Axles - Model 129, 170, 202, 208

Rear axle

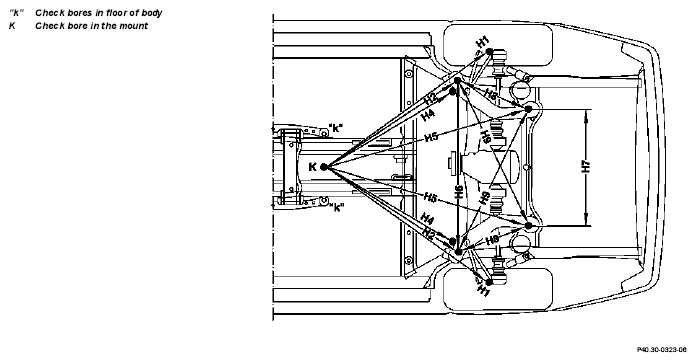

Fig 2: Identifying Distance And Comparison Measurements On Rear Axles - Model 129, 170, 202, 208

	Measure
1	Preparations for distance and comparison measurements	Model 129	AR40.30-P-0401A
		Model 170, 202, 208	AR40.30-P-0401B
2	Carrying out distance and comparison measurements on front axle		*BE40.30-P-1001-06B
		Model 129	AR40.30-P-0402-01A
		Model 170, 202, 208	AR40.30-P-0402-01B
3	Carry out distance and comparison measurements on rear axle		*BE40.30-P-1001-05B  AR40.30-P-0402-02A

TEST VALUES FOR DISTANCE AND COMPARISON MEASUREMENT ON FRONT AXLE

Number	Designation			Model 129	Type 170	Model 202	Model 208
BE40.30-P-1001-06B	Dimension	V1	mm	8	4	4	4
		V2	mm	4	4	4	4
		V3	mm	3	3	3	3
		V4	mm	-	-	-	-
		V5	mm	1250±3	950±3	970±3	970±3
		V6	mm	3	3	3	3
		V7	mm	429±2	414±2	412±2	412±2
		V8	mm	653±3	605±3	622±3	622±3
		V9	mm	653±3	609±3	622±3	622±3
		V10	mm	-	-	-	-
		See picture in		AR40.30-P-0402-01A	AR40.30-P-0402-01B	AR40.30-P-0402-01B	AR40.30-P-0402-01B

TEST VALUES FOR DISTANCE AND COMPARISON MEASUREMENTS ON REAR AXLE

Number	Designation			Model 129	Model 170	Model 202	Model 208
BE40.30-P-1001-05B	Dimension	H1	mm	4	4	4	4
		H2	mm	3	3	3	3
		H4	mm	4	4	4	4
		H5	mm	6	6	6	6
		H6	mm	1070 (±2)	1022 (±2)	1022 (±2)	1022 (±2)
		H7	mm	702 (±2)	654 (±2)	654 (±2)	654 (±2)
		H8	mm	3	3	3	3
		H9	mm	3	3	3	3
		See picture in		AR40.30-P-0402-02A	AR40.30-P-0402-02A	AR40.30-P-0402-02A	AR40.30-P-0402-02A

Fig 3: Identifying Telescopic Measuring Rod (124 589 01 19 00)

Fig 4: Identifying Telescopic Measuring Rod (124 589 02 19 00)

Fig 5: Identifying Mount (170 589 00 63 00)

Fig 6: Identifying Set Of Measurement Fixtures (140 589 09 63 00)

Fig 7: Identifying Connecting Pieces (124 589 08 63 00)
