Carrying out distance and comparison measurements on front axle - AR40.30-P-0402-01A

TEST VALUES FOR DISTANCE AND COMPARISON MEASUREMENT ON FRONT AXLE

Number	Designation			Model 129
BE40.30-P-1001-06B	Dim.	V1	mm	8
		V2	mm	4
		V3	mm	3
		V4	mm	-
		V5	mm	1250±3
		V6	mm	3
		V7	mm	429±2
		V8	mm	653±3
		V9	mm	653±3
		V10	mm	-
		Fig. see		AR40.30-P-0402-01A

Fig 1: Identifying Telescopic Measuring Rod (124 589 01 19 00)

Fig 2: Identifying Telescopic Measuring Rod (124 589 02 19 00)

Fig 3: Identifying Mount (170 589 00 63 00)

Fig 4: Identifying Set Of Measurement Fixtures (140 589 09 63 00)

Fig 5: Identifying Connecting Pieces (124 589 08 63 00)

Comparison measurement " V1 " measured from the check bore " K " to the 8 mm hole in the transverse control arm (4), left to right.
Use measuring probe (024c)140 589 09 63 29.

Fig 6: Measuring From Check Bore To 8mm Hole In Transverse Control Arm

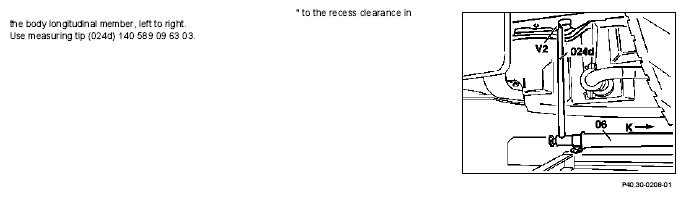

Comparison measurement "V2 " measured from the check bore "K " to the recess clearance in the body longitudinal member, left to right. Use measuring tip (024d) 140 589 09 63 03.

Fig 7: Measuring From Check Bore To Clearance In Body Longitudinal Member
Comparison measurement " V3 " measured from the check bore " K " to the rear transverse control arm mounting, left to right. Use the center of the rubber mount on the inside of the bearing bracket (see arrow) as measuring point, if necessary mark the center.
Use measuring tip (024e) 140 589 09 63 02.

Fig 8: Measuring From Check Bore To Rear Transverse Control Arm Mounting
Use the distance measurement " V5 " of the outer hexagon nuts for the upper damper strut mounting.
Use measuring pin (024g) 140 589 09 63 05.

Fig 9: Using The Distance Measurement Of The Outer Hexagon Nuts For The Upper Damper Strut Mounting
Comparison measurement " V6 " measured from the check bore " K " to the front transverse control arm mounting at the front axle cross member of the body, left to right. Use the center of the rubber mount on the inside of the bearing bracket (see arrow) as measuring point, if necessary mark the center.
Use measuring tips (024e) 140 589 09 63 02.

Fig 10: Measuring From Check Bore To Front Transverse Control Arm Mounting At Front Axle Cross Member Of Body
Distance measurement " V7 " measured between the front and rear transverse control arm mounting on the inside of the bearing brackets.
Use measuring tips (024e) 140 589 09 63 02.

Fig 11: Measuring Between Front And Rear Transverse Control Arm On The Inside Of The Bearing Brackets
Distance measurement " V8 " measured between the rear transverse control arm mountings (inside diameter) at the outsides of the guides.
Use measuring tips (024e) 140 589 09 63 02.

Fig 12: Measuring Between Rear Transverse Control Arm Mountings (Inside Diameter) At The Outsides Of The Guides
Distance measurement " V9 " measured between the front transverse control arm mountings (inside diameter) at the outsides of the guides.
Use measuring tip (024e) 140 589 09 63 02.

Fig 13: Measuring Between Front Transverse Control Arm Mountings (Inside Diameter) At The Outsides Of The Guides
