Convenience closing/opening with transmitter key function - GF80.45-P-2003A
MODELS 202 as of 1.6.97, 208, 210.081 /281 (except 208.4), 210 (except 210.081 /281) as of 1.3.97

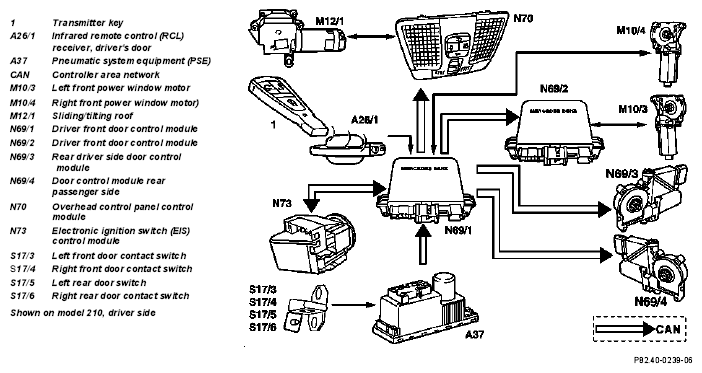

Networking
Function prerequisites :
- no overvoltage/undervoltage
- circuit 15_off and circuit 15R_off
- all doors closed.
Function
Actuation of the "Unlock vehicle" button on the transmitter key triggers the corresponding central locking function. If the button is pressed for longer than 5 seconds, then a convenience locking signal is sent by infrared (IR) by the transmitter key . The signal is picked up by one of the IR receivers. If the function prerequisites are fulfilled, then the corresponding door control module sends the convenience locking command to the CAN. The command is sent as long as the signal is received by the transmitter key. The overhead control panel control module (N70) then executes the tilting/sliding roof convenience closing function . The door control modules execute the power window convenience closing function.
When the "Unlock vehicle" button is pressed, the corresponding convenience opening functions are executed.
| Convenience opening of power windows | GF72.29-P-3004A | ||
| Closing power windows with convenience feature | GF72.29-P-3005A | ||
| Opening sliding/pop-up roof with convenience feature | GF77.20-P-2000A | ||
| Convenience closing of tilting/sliding roof | GF77.20-P-2001A | ||
| Transmitter key | GF80.57-P-4101A |
