Remove/install rear side door - AR72.12-P-0600F
MODEL 210
| Remove/Install | |||
| 1 | Remove/install rear seat cushion | ||
| Model 210.0 | AR91.12-P-1700F | ||

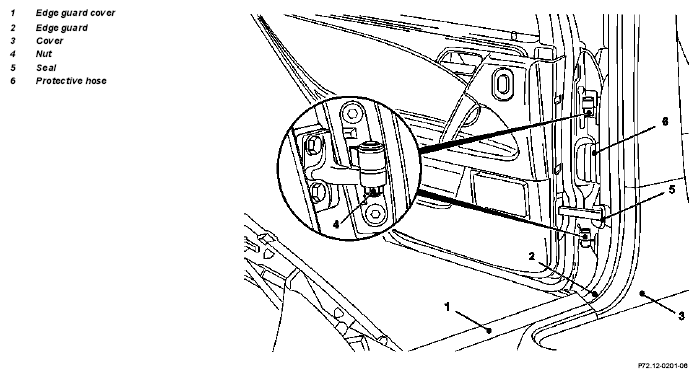

| 2 | Remove edge guard cover rail from front door entrance | Figure | |
| 3 | Remove edge guard cover (1) from front door entrance | Figure | |
| 4 | Loosen edge guard (2) from B-pillar on both sides in area of cover (3) | ||
| 5 | Unclip cover (3) (4 clips) and remove | ||
| 6 | Lift floor carpeting in area of B-pillar and open cable duct | ||
| 7 | Disconnect CL line and electrical connectors on front door in cable duct | ||
| 8 | Unclip protective tube (6) from B-pillar | ||
| 9 | Undo nuts (4) | *BA72.12-P-1001-01A | |
| 10 | Remove seal (5) and unscrew bolt for door catch from B-pillar | *BA72.12-P-1002-01A | |
| 11 | Lift rear door out of hinges, simultaneously pull CL line out of B-pillar and cable duct together with electrical lines. | ||
| 12 | Set down rear door | ||
| When replacing a door, carry out seam sealing and cavity preservation | When replacing a door ↓ Check rubber seal for corrosion and clean if necessary |
||
| Treat door frame in area of contact surface of rubber seal with MB body sealant | *BR00.45-Z-1003-05A | ||
| 13 | Install in the reverse order | ||
| Model 210.0 | AR60.00-P-0700-01F | ||
| Dimensions, if necessary ↓ | *BE60.00-P-1002-01A | ||
| Adjust rear door | AR72.12-P-0650F |
Test and adjustment values, gap dimensions at hoods, doors and covers
| Number | Designation | Model 210.0 | Model 210.2 | |||
|---|---|---|---|---|---|---|
| BE60.00-P-1002-01A | Gap dimension | Front door to A-pillar | Dimension "B" | mm | 6.5 (± 0.5) | 6.5 (± 0.5) |
| Front door to fender | Dimension "H" | mm | 4.5 (± 0.5) | 4.5 (± 0.5) | ||
| Front door to rear door | Dimension "I" | mm | 5.5 (± 0.5) | 5.5 (± 0.5) | ||
| Front door to roof | Dimension "C" | mm | 6.5 (± 0.5) | 6.5 (± 0.5) | ||
| Rear door to upper side section | Dimension "D" | mm | 6.5 (± 0.5) | - | ||
| Rear door to lower side section | Dimension "J" | mm | 4.0 (± 0.5) | 4.0 (± 0.5) | ||
| Fender to A-pillar | Dimension "Q" | mm | - | - | ||
| Front door to rear fender | Dimension "P" | mm | - | - | ||
| Fig., see | AR60.00-P-0700-01F | AR60.00-P-0700-01FA | ||||
| Number | Designation | Model 210 except 210 with code 979, Z04, Z06 | |
|---|---|---|---|
| BA72.12-P-1001-01A | Bolts to door hinge | Nm | 37 |
| BA72.12-P-1002-01A | Bolt at door catch | Nm | 35 |
Repair materials
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-05A | Preservation agent | +A 000 986 72 70 05 |
