Removing and installing rear seat and rear backrest - AR91.12-P-1700F
MODEL 210.0
| Removal, installation | |||

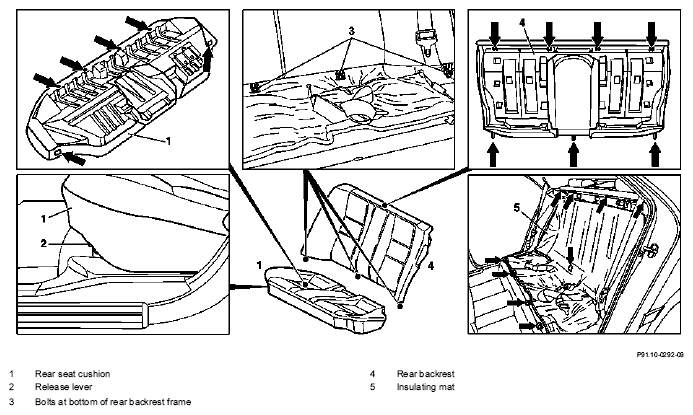

| 1 | Pull up both release levers (2) and lift rear seat cushion (1) | ||
| 2 | Remove rear seat cushion (1) | When reinstalling expose lap belt and belt buckles. Insert rear seat cushion into the two crash retainers at the rear and allow to catch at front. Pay attention to guide pins (4 each). |
|
| 3 | Unscrew bolts (3) in seat belt end fitting at bottom on left and right sides and in rear backrest frame | ||
| 4 | Lift rear backrest (4) up and remove | Before installing position insulating mat; expose guide pins for rear seat cushion. When installing insert catches (arrows) into top of rear wall; expose rear seat belts. |
|
| 5 | Reinstall in opposite order |
