Adjust rear door - AR72.12-P-0650F
MODEL 210
| Adjust | |||
| 1 | Remove striker eye (2) | ||
| 2 | Check gap dimensions at door all the way around | Figure | |
| Model 210.0 | AR60.00-P-0700-01F | ||
| Model 210.2 | AR60.00-P-0700-01FA | ||

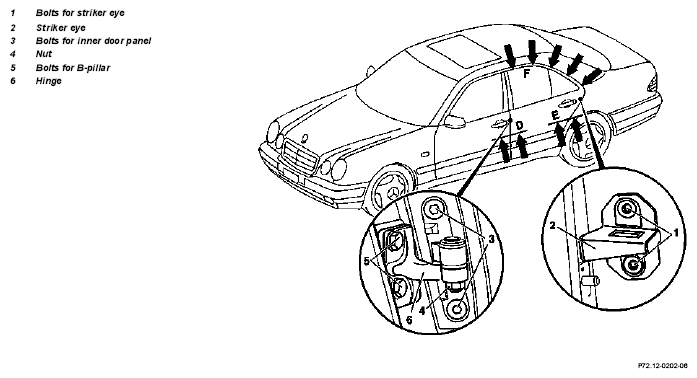

| 3 | Loosen bolts (5) on B-pillar, tighten and adjust by moving rear door, adjust gaps | *BA72.12-P-1001-01A | |
| 4 | Loosen bolts (3), tighten and adjust contour on hinge side by moving rear door | Door paneling (D) should be flush with the driver's door contour or should be located max. 1 mm deeper |
*BA72.12-P-1001-01A |
| 5 | Bolt on striker eye | ||
| 6 | Close rear door completely and adjust contour on striker eye by moving striker eye | Door paneling (E) should be flush with the contour of the rear fender or should extend max. 1 mm | |
| 7 | Tighten striker eye | *BA72.12-P-1003-01A | |
| 8 | Check contour and fit on window frame (F) to roof paneling and rear pillar, adjust if necessary | ||
| 9 | Check rear door for easy motion |
Test and adjustment values, gap dimensions at hoods, doors and covers
| Number | Designation | Model 210.0 | Model 210.2 | |||
|---|---|---|---|---|---|---|
| BE60.00-P-1002-01A | Gap dimension | Front door to A-pillar | Dimension "B" | mm | 6.5 (± 0.5) | 6.5 (± 0.5) |
| Front door to fender | Dimension "H" | mm | 4.5 (± 0.5) | 4.5 (± 0.5) | ||
| Front door to rear door | Dimension "I" | mm | 5.5 (± 0.5) | 5.5 (± 0.5) | ||
| Front door to roof | Dimension "C" | mm | 6.5 (± 0.5) | 6.5 (± 0.5) | ||
| Rear door to upper side section | Dimension "D" | mm | 6.5 (± 0.5) | - | ||
| Rear door to lower side section | Dimension "J" | mm | 4.0 (± 0.5) | 4.0 (± 0.5) | ||
| Fender to A-pillar | Dimension "Q" | mm | - | - | ||
| Front door to rear fender | Dimension "P" | mm | - | - | ||
| Fig., see | AR60.00-P-0700-01F | AR60.00-P-0700-01FA | ||||
| Number | Designation | Model 210 except 210 with code 979, Z04, Z06 | |
|---|---|---|---|
| BA72.12-P-1001-01A | Bolts to door hinge | Nm | 37 |
| BA72.12-P-1003-01A | Bolts to striker eye | Nm | 32 |
