Dismantling |
|
|
| 1 |
Remove jacket tube |
|
AR46.10-P-0400B |
| 2 |
Remove steering lock part if necessary |
|
|
| 3 |

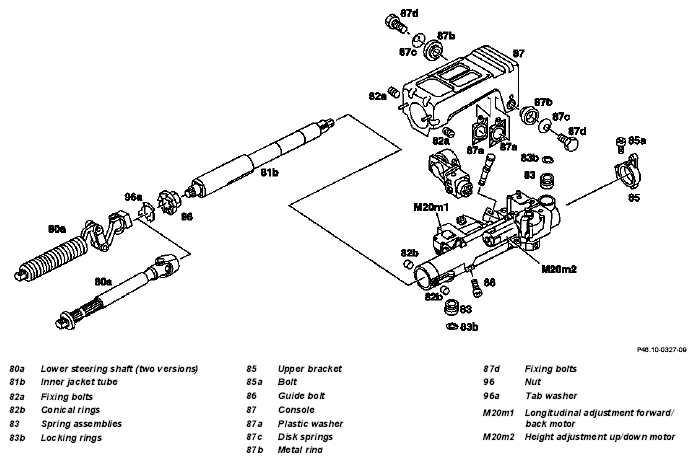

Clamp steering wheel hub in vise and mount jacket tube with splines of upper steering shaft (70g) |
|
|
 |
Steering wheel hub for clamping upper steering shaft |
|
WF58.50-P-4610-02I |
| 4 |
Detach lower steering shaft (80a) |
|
AR46.10-P-0500-01D |
| |
|
Check lateral runout of lower steering shaft (80a) (visual inspection). |
|
| 5 |
Unscrew fixing bolts (87d, 82a), push down console (87) away from jacket tube. Check seat of plastic washers (87a) and metal ring (87b) |
|
|
| 6 |
Remove height adjustment up/down motor (M20m2) |
Component parts of the height adjustment are not available, replace complete outer jacket tube if necessary. |
|
| 7 |
Remove longitudinal adjustment forward/back motor (M20m1) |
|
AR46.10-P-0600-03A |
| 8 |
Remove locking rings (83b), removing thrust piece with spring assemblies (83) |
|
AR46.10-P-0600-04A |
| 9 |
Detach upper bracket (85) |
|
|
| 10 |
Unscrew guide bolt (86) and pull inner jacket tube downwards out of the outer jacket tube |
Component parts of the inner jacket tube are not available, replace complete inner jacket tube if necessary. |
|
 |
Assembling |
|
|
| 11 |
Lubricate inner jacket tube (81b) and push into the outer jacket tube from underneath |
The inner jacket tube must slide in the outer jacket tube without jamming. |
|
| |
|
Long-life grease |
*BR00.45-Z-1001-06A |
| 12 |
Screw in guide bolt (86), aligning guide groove in the inner jacket tube (81b) at the same time |
 |
*BA46.10-P-1016-03D |
| 13 |
Install longitudinal adjustment forward/back motor (M20m1) and adjust jacket tube longitudinal play |
|
AR46.10-P-0600-03A |
| |
|
|
*BE46.10-P-1002-03A |
| |
|
 |
Figure |
| |
|
|
*BA46.10-P-1014-03D |
| 14 |
Insert thrust piece with spring assemblies (83) and assemble with new locking ring (83b) |
|
AR46.10-P-0600-04A |
| |
|
Multi-purpose paste |
*BR00.45-Z-1009-06A |
| 15 |
Install height adjustment up/down motor (M20m2) |
|
*BA46.10-P-1017-03D |
| 16 |
Press plastic washers (87a) and metal ring (87b) into console (87) |
|
|
| 17 |
Push on console (87) over the jacket tube and secure. |
Pay attention to adjustment and ease of movement. |
AR46.10-P-0600-10A |
| |
|
|
BA46.10-P-1018-03D |
| 18 |
Assemble upper bracket (85) |
Observe installed position. |
AR46.10-P-0600-01B |
| |
|
*BE46.10-P-1003-03A |
|
| |
|
|
*BA46.10-P-1015-03D |
| 19 |
Attach lower steering shaft (80a) in the specified installed position |
|
AR46.10-P-0500-01D |
| |
|
|
BA46.10-P-1004-01B |
