Removing, installing |
|
|
 Installation |
Replace self-locking bolts and nuts |
|
|
| 1 |
Remove cover under instrument panel |
|
AR68.10-P-1500F |
| 2 |
Remove steering wheel |
|
AR46.10-P-0100B |
| 3 |
Remove instrument cluster |
|
AR54.30-P-6015EA |
| 4.1 |
Remove fanfare horns and airbag clock spring contact (A45) |
|
AR46.10-P-0200A |
| 4.2 |
Remove steering angle sensor (N49) |
Vehicles with ADS or ESP |
AR46.10-P-0300B |
| 5 |

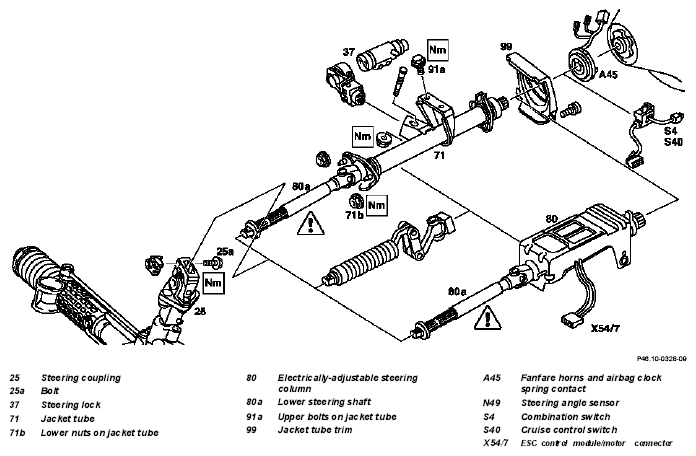

Remove combination switch (S4) and cruise control switch (S40) |
|
AR54.25-P-2800EA |
| 6 |
Remove jacket tube trim (99) |
|
|
| 7.1 |
Remove steering lock (37) |
Vehicles with mechanical key. |
AR46.10-P-0900C |
| 8.1 |
Disconnect ESC control module/motor connector (X54/7) |
With electrically-adjustable steering column (80). |
|
| 9.1 |
Detach heat shield from steering coupling |
Engine 112, 119.
 Removal:
Insert bolt again before pressing out the lower steering shaft |
AR46.10-P-0400-01B |
| 10 |
Unscrew bolt (25a) from steering coupling (25) |
 |
*BA46.10-P-1001-01B |
| 11 |
Press lower steering shaft out of steering coupling |
- Do not use force (hammer blows, severe a leverage), expand the clamping slot slightly with a screwdriver if necessary.
- Only separate the connection after removing a the fanfare horns and airbag clock spring contact.
|
|
| 12 |
Detach lower nuts (71b) from jacket tube (71) |
|
*BA46.10-P-1013-03D |
| 13 |
Detach upper bolts (91a) from jacket tube (71) |
Installation
: Attach all bolts and nuts (it must still be possible to move the jacket tube), then tighten the upper bolts first. |
|
| |
|
|
*BA46.10-P-1002-03D |
| 14 |
Remove jacket tube (71) |
Installation:
Pay attention to the straight-ahead position of the jacket tube (triggering lug must point towards the combination switch) and steering gear.
Lower steering shaft (80a) with light-alloy sliding tube (4-cylinder engines)
Do not use light-alloy steering shaft as a separation point as:
- The position of the inner slide in relation to a the outer slide is determined by a slightly offset tooth and therefore must not be assembled using force.
- It must be possible to move the inner slide a easily in the longitudinal direction, refer to: ↓
|
|
| |
|
Detaching and attaching lower steering shaft. |
AR46.10-P-0500-01D |
| |
|
|
*BA46.10-P-1004-01B |
| 15 |
Install in reverse order |
|
|
