Assembly hook for tacking tool - WF58.50-P-9118-01A

Assembly hook to be made from 3 mm dia. wire.

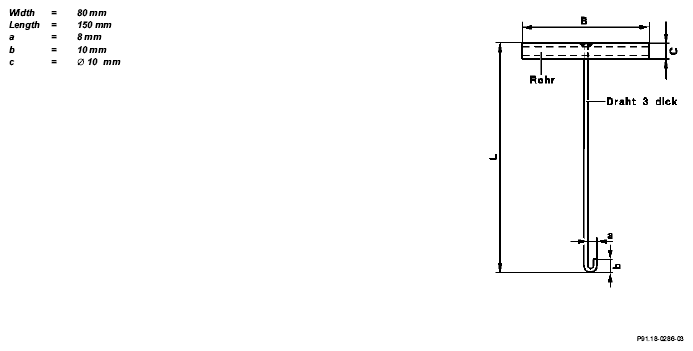

Fig 1: Identifying Dimension Of Assembly Hook For Tacking Tool

G04715775
