Interior lights (IL [IBL]) function - GF82.20-P-0002B

Models 202 as of 1.6.97, 208, 210.081 /281 (except 208.4), 210 (except 210.081 /281) as of 1.3.97

Networking of components

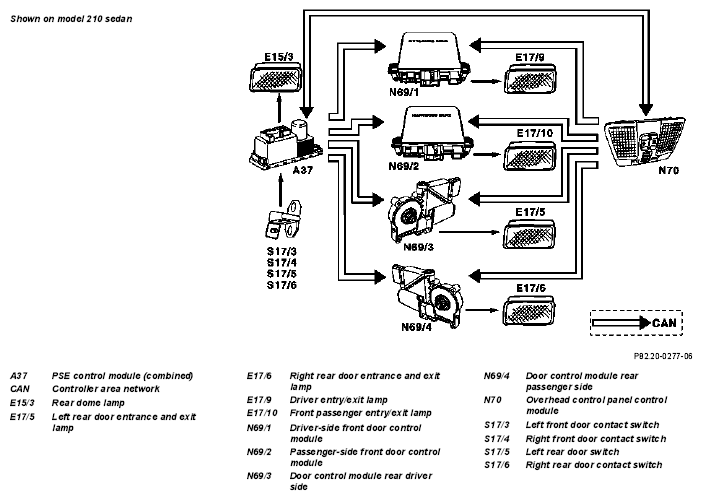

Fig 1: Identifying Interior Lights (IL [IBL]) Components (Shown On Model 210 Sedan)

G04636845

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location of interior lights' (IBL) components	Sedan	GF82.20-P-0002-01B
	Model 202.07/08/18	GF82.20-P-0002-01C
	Model 210.2	GF82.20-P-0002-01D
Switch illumination		GF82.20-P-0003A
Interior lamp On and Off switch		GF82.20-P-2002A
Operate reading lamp switch		GF82.20-P-2003A
Actuate rear dome lamp switch		GF82.20-P-2004A
Operate door contact On and Off switch	Sedan	GF82.20-P-2005A
	Models 202.07/08/18	GF82.20-P-2005B
	Model 210.2	GF82.20-P-2005C
Switch on interior lights using central locking (CL)		GF82.20-P-2006A
Switch on interior lights using anti-theft alarm system (ATA), function		GF82.20-P-2007A
Luggage compartment lighting		GF82.20-P-2008A
Trunk lid surround lights, function	Model 210 as of 7/99	GF82.20-P-2023A
Inside door handle and footwell illumination, function	Model 210 as of 7/99 with code 876a Model 210 as of 7/99 with code 955a Model 210 as of 7/99 with code 954a	GF82.20-P-2024A
