Basic Knowledge
>>
Interior lighting, location of components - GF82.20-P-0002-01D
Interior lighting, location of components - GF82.20-P-0002-01D
Location of components

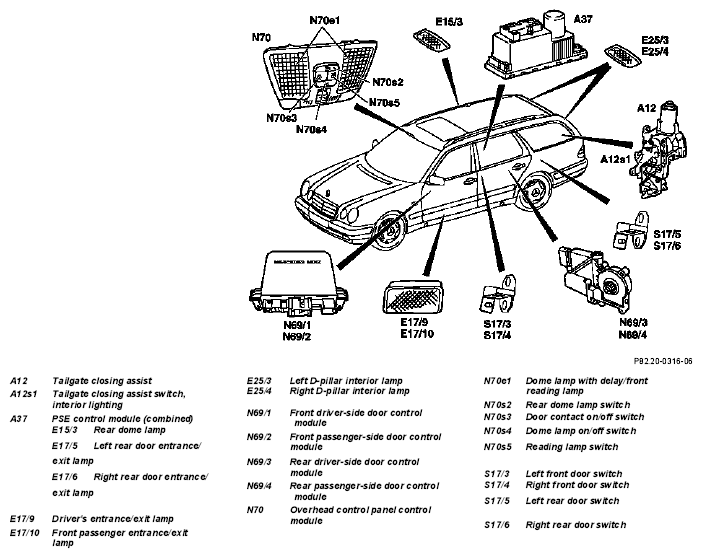

Fig 1: Identifying Interior Lights Components Location
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
