Automatic air conditioning housing, location/purpose/design/function - GF83.40-P-2105A: Notes

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 210

with CODE (581a) Air conditioning (automatic)

with CODE (498) Japanese version

MODEL 140 as of 1.9.95

Illustrated on model 210 Design

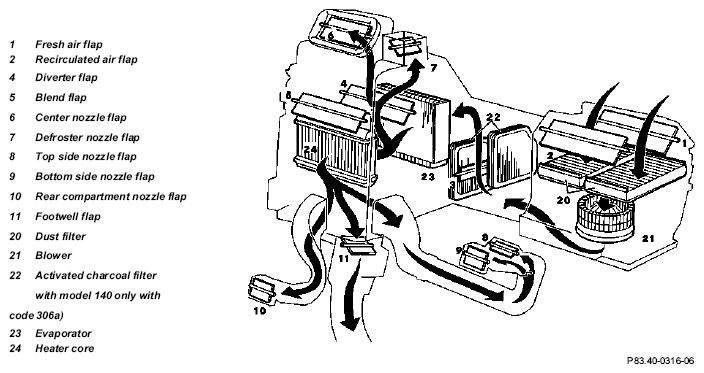

Fig 1: Automatic Air Conditioning Housing Function Diagram - Illustrated On Model 210 Design

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Automatic air conditioning housing, location	Model 210	GF83.40-P-2105-01A
	Model 140 as of 09/95	GF83.40-P-2105-01B
Automatic air conditioning housing, location		GF83.40-P-2105-03A
Automatic air conditioning housing, function	Air guidance in automatic air conditioning housing during normal operation (auto A/C)	GF83.40-P-2105-02A
Automatic air conditioning housing, function	Air guidance in automatic air conditioning housing during cooling mode (auto A/C)	GF83.40-P-2105-02B
Automatic air conditioning housing, function	Air guidance in automatic air conditioning housing during heating mode (auto A/C)	GF83.40-P-2105-02C
Automatic air conditioning housing, function	Air guidance in automatic air conditioning housing during cooling mode with activated charcoal filter (auto A/C)	GF83.40-P-2105-02D
Automatic air conditioning housing, function	Air guidance in automatic air conditioning housing during heating mode with activated charcoal filter (auto A/C)	GF83.40-P-2105-02E
