Automatic air conditioning housing, location - GF83.40-P-2105-01B

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

The automatic air conditioning housing (1) is located below the instrument panel.

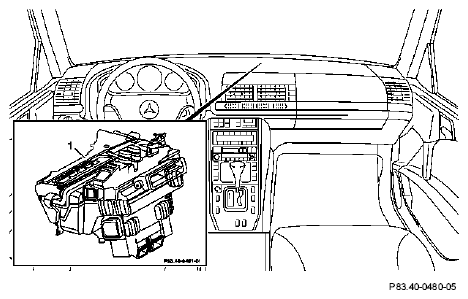

Fig 1: Identifying Automatic Air Conditioning Housing Location
G05440714Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
