Automatic air conditioning housing, purpose - GF83.40-P-2105-03A
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

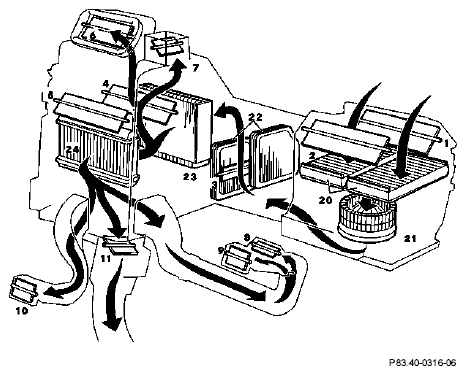

The automatic air conditioning housing serves to hold the following components
- Air guide flaps (1 to 11)
- Dust filter (20)
- Blower with blower control (21)
- Activated charcoal filter (22)
- Evaporator (23)
- Heater core (24)
- Expansion valve
- Vacuum elements
forming one complete unit.
The automatic air conditioning housing serves for distribution of the air required for ventilation of the vehicle to the appropriate air ducts and air outlets depending on the desired temperature in the passenger compartment.
The air guidance is dependent on various operating states such as:
- Normal operation
- Cooling mode
- Heating mode
