Removing and installing front wheel hub - AR33.20-P-0310A: Notes

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 140

MODEL 170

MODEL 202

MODEL 208

MODEL 210 (except 210.08 /28)

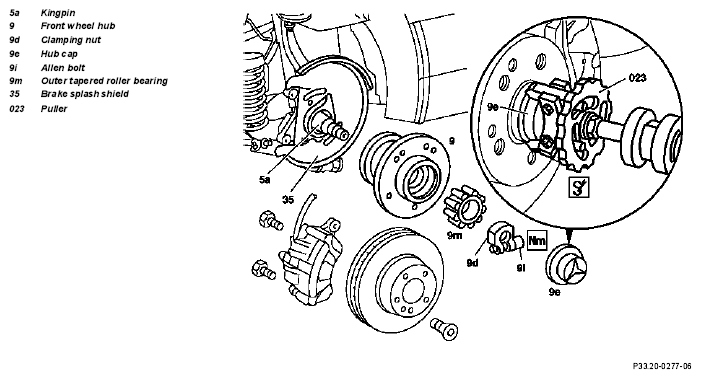

Fig 1: Identifying Front Wheel Hub Components - Model 202
G04632377Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Modification notes

15.10.92 Technical modification: Contact spring and washer on front wheel bearing discontinued Step 3
30.7.95 Technical modification: Front wheel hub dimensions revised Step 5
REMOVINGINSTALLING Removing, installing
1 Remove front wheel   AP40.10-P-4050Z
2 Remove and check brake disc   AR42.10-P-0220A
3 Pull off hub cap (9e) SPECIAL TOOL Figure
REFER TO COMPONENT MODIFICATIONS Front wheel bearing Model 140 BT33.20-P-9210-01A
4 Slacken Allen bolt (9i), unscrew clamping nut (9d) and remove tapered roller bearing (9m) IMPORTANTInstallation  : ↓
    Adjust wheel bearing play. AR33.20-P-0300A
5 Pull off front wheel hub (9) IMPORTANT If wheel hub is difficult to remove ↓ AR33.20-P-0310-01A
    SPECIAL TOOL Figure
    SPECIAL TOOL Figure
    SPECIAL TOOL Fig 5
    IMPORTANTInstallation:  Pack front wheel hub with grease, coat radial seal ring and pack space between sealing lip and tapered roller bearing with grease. Push front wheel hub with inner tapered roller bearing and radial seal ring onto kingpin.
    FLUID SPECIFICATION *BF33.20-P-1001-01A
REFER TO COMPONENT MODIFICATIONS Front wheel hub dimensions revised Model 202 BT33.20-P-0001-01A
INSPECT Checking
6 Check brake splash shield (35) If necessary replace
7 Check kingpin (5a) for discoloration and wear on bearing seats or contact surface of radial seal ring IMPORTANT Discoloration may be caused e.g. by heat generated due to incorrect bearing play settings. If necessary ↓
Replace steering knuckle
    Model 140 AR33.25-P-0400A
    Models 170, 202, 208 AR33.25-P-0400B
    Model 210 except 210.08/28 AR33.25-P-0400C
8 Check front wheel hub Check threaded bores and rotor teeth for damage.
9 Check tapered roller bearing, bearing races and radial seal ring If necessary ↓ AR33.20-P-0310-02A
    Disassemble and assemble front wheel hub.
IMPORTANT Model 210.6
On vehicles with extended wheelbase the front wheel hub cannot be disassembled. The entire front wheel hub must be replaced complete on these vehicles.		 AR33.20-P-0320A
10 Install in the reverse order
11 Depress brake pedal several times
FLUID SPECIFICATION Wheel hub, hub cap

Number Designation Models 140, 202 Model 170
BF33.20-P-1001-01A Filling quantities Hub cap g 15 15
Hub (total capacity) g 60 60
Specifications for service products Sheet BB00.40-P-0265-01A BB00.40-P-0265-01A
FLUID SPECIFICATION Wheel hub, hub cap

Number Designation Model 208 Model 210
BF33.20-P-1001-01A Filling quantities Hub cab g 15 15
Hub (total capacity) g 60 60
Specifications for service products Sheet BB00.40-P-0265-01A BB00.40-P-0265-01A
Fig 2: Identifying Removal And Installation Tool (116 589 22 33 00)
G04632378Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Identifying Puller (001 589 50 33 00)
G04632379Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 4: Identifying Impact Extractor (201 589 10 33 00)
G04632380Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 5: Identifying Collet Chuck (201 589 03 34 00)
G04632381Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
