Remove/install front axle half - AR33.10-P-0200A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 140

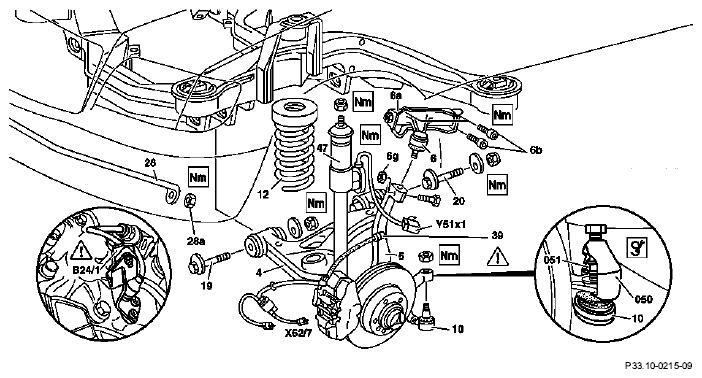

Fig 1: Identifying Front Axle Half Remove/Install Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
Installation	Replace self-locking nuts and bolts.
1	Remove front wheel		AP40.10-P-4050Z
2	Install guard plates for brake covers		AR42.00-P-0100-01A
			Figure
3	Remove front spring (12)		AR32.20-P-0200B
4	Detach all plastic covers on the front axle
5	Disconnect front axle electrical distributor connector (62/6 or X62/7) in major assemblies compartment	Pull out wiring harness through the wheel housing
6	On vehicles with ADS, disconnect connection for front axle damping valve (Y51x1/2)	Pay attention to the shock-sensitive acceleration sensor (B24/1)
	Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid.	Pour brake fluid only into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
7	Unscrew brake hose (39) from brake line	Protect lines against contamination
		Installation: The brake hose must not be twisted after tightening.	*BA42.10-P-1001-04A
			*WH58.30-Z-1003-11A
	Notes on installing brake hoses	Models 129, 140, 170, 202, 208, 210	AH42.10-P-9406-01A
	Notes on brake fluid	All models	AH42.50-P-0001-01A
8	Detach torsion bar from torsion bar link rod		*BA32.20-P-1002-02B
		Installation: check torsion bar rubber mount
9	Detach tie rod (10) from steering knuckle arm/steering knuckle	Check rubber boot and ball joint for wear and damage	*BA46.40-P-1001-01A
		Puller (050)	Fig 4
		Thrust piece (051)	Fig 5
10	Support lower transverse control arm (4)
11	Detach lower transverse control arm (4) from front axle carrier	Replace nuts and tighten with vehicle in curb condition.	*BA33.20-P-1010-01A
12	Detach steering knuckle (5) from upper transverse control arm (6)	Fasten steering knuckle (5) on spring tower	AR33.25-P-0500-01A
			Figure
			*BA33.20-P-1001-01A
13	Remove front axle half
14	Remove upper transverse control arm		AR33.20-P-0500A
15	Install in the reverse order
16	Bleed front brake system		AR42.10-P-0010A
17	Carry out chassis alignment check.	Tighten nuts on lower transverse control arm with vehicle in curb condition.	AR40.20-P-0200A

FRONT AXLE TORSION BAR

Number	Designation			Model 140 up to 10/95	Model 140 as of 10/95
BA32.20-P-1002-02B	Self-locking nut, link rod to torsion bar	M10	Nm	70	80
		M10x1.5	Nm	-	-
		M12x1.5	Nm	-	-
		M14x1.5	Nm	-	-

WHEEL LOCATION, HUB

Number	Designation		Model 140
BA33.20-P-1001-01A	Self-locking nut, clamp connection of upper transverse control arm to steering knuckle	Nm	125
BA33.20-P-1010-01A	Self-locking nut, lower transverse control arm to front axle carrier	Nm	180

BRAKE LINES, BRAKE HOSES

Number	Designation		Model 140
BA42.10-P-1001-04A	Brake line to brake hose	Nm	14

TIE ROD

Number	Designation		Model 140
BA46.40-P-1001-01A	Self-locking nut, tie rod to pitman arm	Nm	50

Fig 2: Identifying Spreader (140 589 02 31 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Guard Plate (140 589 01 31 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Puller (140 589 00 33 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Identifying Thrust Piece (140 589 00 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1003-11A	Open double end box wrench a/f 8x9 mm or a/f 10x11 mm
