Disassembling and assembling front wheel hub - AR33.20-P-0320A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 140

MODEL 170

MODEL 202

MODEL 208

MODEL 210 (except 210.08 /28 /6)

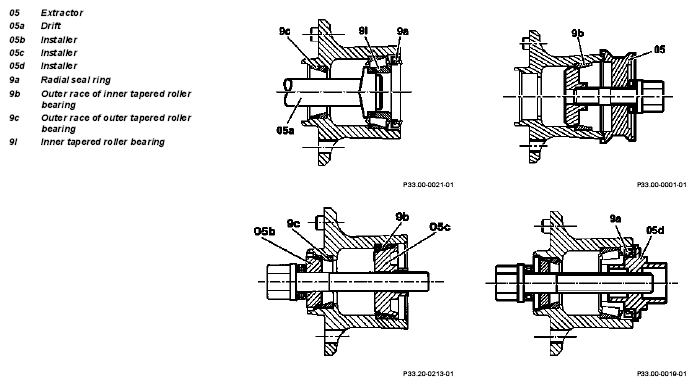

Fig 1: Identifying Front Wheel Hub Components - MODEL 202
G04632402Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
DISASSEMBLING Disassembling
1 Remove front wheel hub   AR33.20-P-0310A
2 Using drift (05a) - knock out inner tapered roller bearing (9l) and radial seal ring (9a) SPECIAL TOOL Model 140 Fig 4
    SPECIAL TOOL Models 170, 202, 208, 210 Fig 7
3 Using drift (05a) - knock out bearing race of outer tapered roller bearing (9c) SPECIAL TOOL Model 140 Fig 4
    SPECIAL TOOL Models 170, 202, 208, 210 Fig 7
4 Pull bearing race of inner tapered roller bearing (9b) out of front wheel hub using extractor (05) SPECIAL TOOL Model 140 Fig 2
    SPECIAL TOOL Models 170, 202, 208, 210 Fig 5
5 Clean tapered roller bearing and front wheel hub
INSPECT Checking
6 Check tapered roller bearings and bearing races   AR33.20-P-0310-02A
7 Check front wheel hub Check tapped holes and rotor teeth for damage
ASSEMBLING Assembling
8 Pull bearing races (9b, 9c) into front wheel hub using installer (05b, 05c) SPECIAL TOOL Model 140 Fig 3
    SPECIAL TOOL Models 170, 202, 208, 210 Fig 6
9 Insert inner tapered roller bearing (9l) into front wheel hub Grease tapered roller bearing before installing
10 Pull radial seal ring (9a) into front wheel hub as far as the stop using installer.
Coat contact surface of radial seal ring with grease and pack space between lip and dust lip with grease.		 SPECIAL TOOL Model 140 Fig 3
    SPECIAL TOOL Models 170, 202, 208, 210 Fig 6
11 Pack wheel hub with grease FLUID SPECIFICATION *BF33.20-P-1001-01A
12 Insert outer tapered roller bearing into front wheel hub Grease tapered roller bearing before installing
12 Install front wheel hub   AR33.20-P-0310A
FLUID SPECIFICATION Wheel hub, hub cap

Number Designation Model 129 Models 140, 202 Model 170
BF33.20-P-1001-01A Filling quantities Hub cap g 15 15 15
Hub (total capacity) g 60 60 60
Specifications for service products Sheet BB00.40-P-0265-01A BB00.40-P-0265-01A BB00.40-P-0265-01A
FLUID SPECIFICATION Wheel hub, hub cap

Number Designation Model 208 Model 210
BF33.20-P-1001-01A Filling quantities Hub cap g 15 15
Hub (total capacity) g 60 60
Specifications for service products Sheet BB00.40-P-0265-01A BB00.40-P-0265-01A
Fig 2: Identifying Extractor (140 589 11 33 00)
G04632403Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Identifying Installer (140 589 00 43 00)
G04632404Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 4: Identifying Drift (140 589 00 15 00)
G04632405Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 5: Identifying Extractor (201 589 00 33 00)
G04632406Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 6: Identifying Installer (201 589 01 43 00)
G04632407Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 7: Identifying Drift (202 589 00 15 00)
G04632408Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
