Remove/install propeller shaft - AR41.10-P-0050DA: Notes

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 140

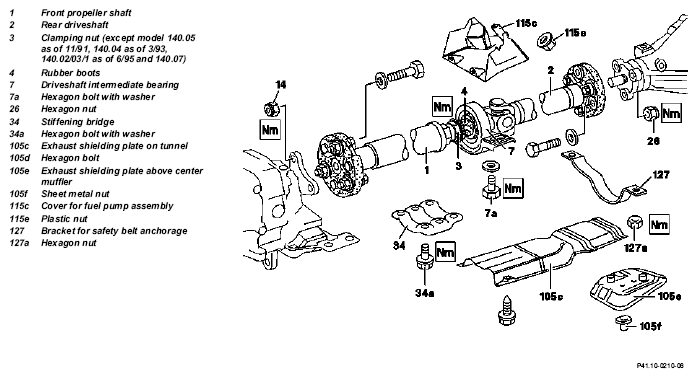

Fig 1: Identifying Propeller Shaft Remove/Install Components - Model 140
G04715528Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/install
1 Remove exhaust system Engine 104 AR49.10-P-7000D
    Engine 119 LH AR49.10-P-7000E
    Engine 120 AR49.10-P-7000F
    Engine 603 ra49006027000x
2 Detach exhaust shielding plate (105c) from tunnel
3 Detach exhaust shielding plate (105e) over the center muffler IMPORTANTInstallation:  Replace sheet metal nuts.
4 Detach cover for fuel pump assembly (115c)   AP47.20-P-0780-03DA
5 Remove bracket for safety belt anchorage (127). IMPORTANTInstallation TORQUE SPECIFICATION Attach retaining bracket for seat belt mounting. AR91.40-P-0502-02DA
6 Detach reinforcement bridge (34) TORQUE SPECIFICATION *BA61.10-P-1001-01B
7 Detach clamping nut (3) of propeller shaft SPECIAL TOOL Models 140.02/03/1 up to 6/95 and 140.04 up to 3/93,
Models 140.050/051 up to 11/91.		 Figure
    IMPORTANTInstallation TORQUE SPECIFICATION Tighten clamping nut of propeller shaft. AR41.10-P-0050-12DA
    Observe technical modification. ↓
REFER TO COMPONENT MODIFICATIONS Clamp connection of propeller shaft Converted to flexible connection. BT41.10-P-9110-01DA
8 Detach bolts (7a) of propeller shaft intermediate bearing IMPORTANT Tighten bolts of propeller shaft intermediate bearing AR41.10-P-0050-13DA
9 Dismantle front propeller shaft from transmission IMPORTANT Flexible disk remains on propeller shaft.
    IMPORTANTInstallation TORQUE SPECIFICATION Mount the front propeller shaft on the transmission. AR41.10-P-0050-07DA
10 Remove driveshaft from final-drive unit. IMPORTANT Flexible disk remains on propeller shaft. AR41.10-P-0050-03DA
    IMPORTANT Mount the rear propeller shaft on the rear axle center assembly.
Observe technical modifications ↓		 AR41.10-P-0050-04DA
REFER TO COMPONENT MODIFICATIONS Vibration damper on rear propeller shaft models 140.1  BT41.10-P-9109-01DA
REFER TO COMPONENT MODIFICATIONS Universal joint on rear propeller shaft models 140.050/051  BT41.10-P-9111-02DA
REFER TO COMPONENT MODIFICATIONS Rear driveshaft models 140.03/1  BT41.10-P-9111-01DA
REFER TO COMPONENT MODIFICATIONS Rear driveshaft models 140.02/03  BT41.10-P-0001-01A
11 Loosen fitted sleeves on flexible couplings.   AR41.10-P-0050-09DA
REFER TO SHOP-MADE TOOLS Drift for loosening fitted sleeves in flexible couplings.   WF58.50-P-4110-01A
12 Unscrew bolts (7a) of propeller shaft intermediate bearing
13 Detach propeller shaft from centering pin on transmission and at the rear axle, then extract to the rear IMPORTANTInstallation FLUID SPECIFICATION Coat splined shaft profile with MB long-term grease *BF41.10-P-1001-01A
14 Disconnect front and rear propeller shaft if necessary IMPORTANTInstallation:  Coat the spline shaft profile with Molykote grease. ↓
Specifications for Service Products, sheet 266.2.
    Reconnect front and rear sections of propeller shaft. AR41.10-P-0050-05DA
INSPECT Inspecting
15 Check flexible couplings, centering sleeves and propeller shaft intermediate bearing for wear if necessary replace ↓
    Remove/install propeller shaft intermediate bearing and replacing deep-groove ball bearing. AR41.10-P-0100DA
    Replace centering sleeve. AR41.10-P-0200DA
16 Install in the reverse order
NOTESInstallation  Replace self-locking nuts and bolts.
TORQUE SPECIFICATION PROPELLER SHAFT

Number Designation Model 140
BA41.10-P-1001-01A Self-locking nut of flexible joint to transmission or front propeller shaft M10 Nm -
M12 Nm 60
BA41.10-P-1002-01A Self-locking nut, flexible coupling to rear propeller shaft or rear axle center assembly M10 Nm -
M12 Nm 60
BA41.10-P-1003-01A Clamping nut of propeller shaft   Nm 40
TORQUE SPECIFICATION DRIVESHAFT CENTER BEARING

Number Designation Model 140
BA41.40-P-1001-01A Bolt driveshaft center bearing to frame Bolt with washer Nm 25
Bolt with collar and self-centering tip Nm 30
Screw with collar without self-centering tip Nm -
TORQUE SPECIFICATION FRAME FLOOR

Number Designation Model 140
BA61.10-P-1001-01B Self-locking bolt of stiffener bridge to frame floor Nm 25
TORQUE SPECIFICATION SAFETY BELTS

Number Designation Model 140
BA91.40-P-1001-01B Nut for bracket holding safety belt anchorage to floorpan Nm 270
FLUID SPECIFICATION PROPELLER SHAFT

Number Designation Model 140
BF41.10-P-1001-01A Quantity of grease Centering sleeve or propeller shaft g 6
Specifications for Service Products Sheet BB00.40-P-0267-00A
Fig 2: Identifying Open-End Wrench (126 589 00 01 00)
G04715529Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
