Remove Fuel Injectors: Notes
WARNING: This page is about a different variant/trim than selected.
WARNING:
- Always keep sparks and flames away from fuel. Fuel can easily ignite which could cause serious injury or death, and damage to equipment.
- Highly pressurized fuel may spray out if the fuel line is cut. Due to the following dangers occurring with a fuel spray, always complete the [Fuel Line Safety Procedure] to prevent the fuel from spraying.
- Fuel may cause irritation if it comes in contact with skin and eyes.
- If fuel ignites and causes a fire, it may lead to serious injury or death, and damage to property and facilities.
- A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before servicing the fuel system, make sure to discharge static electricity by touching a vehicle.
CAUTION:
- Be careful when handling the end area of the fuel injector. If the end area of the fuel injector is touched by hand or pressed against an object, it could cause a malfunction.

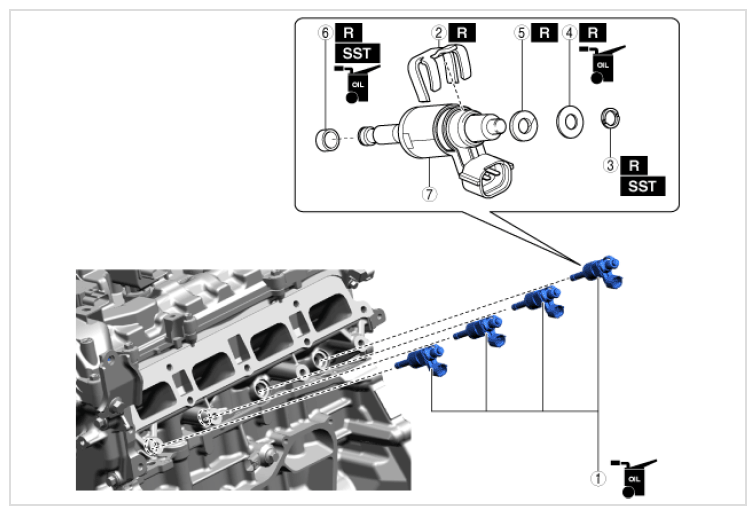

- Remove in the order indicated in the table.
PART NAME DESCRIPTION
| Step | Part name | |||
|---|---|---|---|---|
| 1 | Fuel injector component (See FUEL INJECTOR COMPONENT INSTALLATION NOTE ) |
Engine oil | - | - |
| 2 | Spacer (See SPACER INSTALLATION NOTE ) |
- | Replacement part | - |
| 3 | Stopper ring (See STOPPER RING REMOVAL NOTE ) (See STOPPER RING INSTALLATION NOTE ) |
- | Replacement part | 49 D013 104 (component part for 49 D013 1A0) |
| 4 | O-ring | Engine oil | Replacement part | - |
| 5 | Back-up ring (See BACK-UP RING INSTALLATION NOTE ) |
- | Replacement part | - |
| 6 | Teflon seal (See TEFLON SEAL REMOVAL NOTE ) (See TEFLON SEAL INSTALLATION NOTE ) |
Engine oil | Replacement parts | 49 D013 102, 49 D013 103, 49 D013 104 (component parts for 49 D013 1A0) |
| 7 | Fuel injector | - | - | - |
