Teflon seal removal note
WARNING: This page is about a different variant/trim than selected.

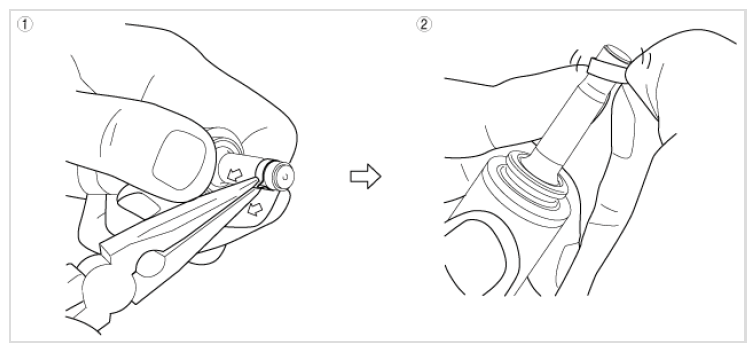

- Remove the teflon seals as shown in the figure below.
NOTE:
- When stretching the teflon seals, do not damage the fuel injector with the tool.
 Courtesy of MAZDA MOTORS CORP.
|
SYMBOL AND CONTENT DESCRIPTION
| Symbol |
Content |
| (1) (2)... |
Servicing procedure |
