Fuel injector component installation note

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • If oil is applied to the fuel injectors, oil may adhere to the injection hole areas and interfere with the function of the fuel injectors. To prevent this, apply oil to the cylinder head side.

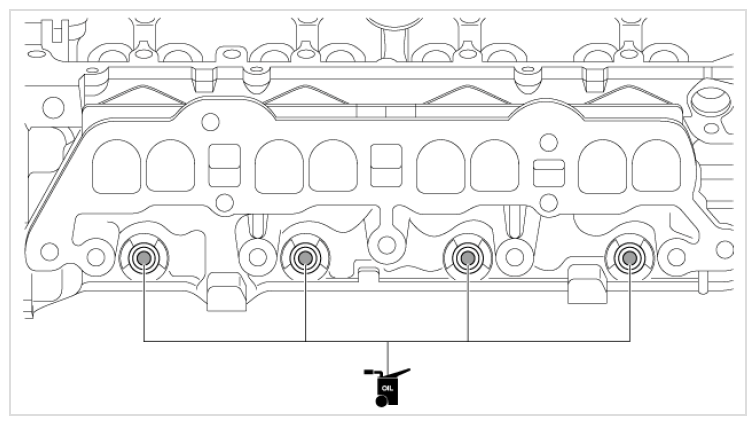

  1. Apply engine oil to the fuel injector installation holes.
    G16700466Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    Engine oil
    Engine oil application area

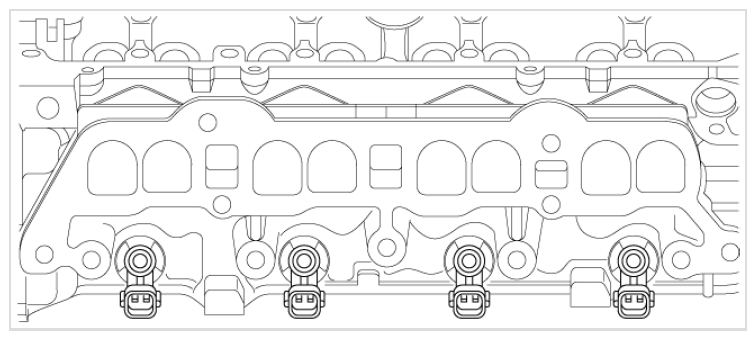

  2. Insert the fuel injectors into the installation holes one by one, being careful of the orientation of the fuel injector.
G16700467Courtesy of MAZDA MOTORS CORP.
