Remove Engine Mount (LH): Notes

WARNING: This page is about a different variant/trim than selected.

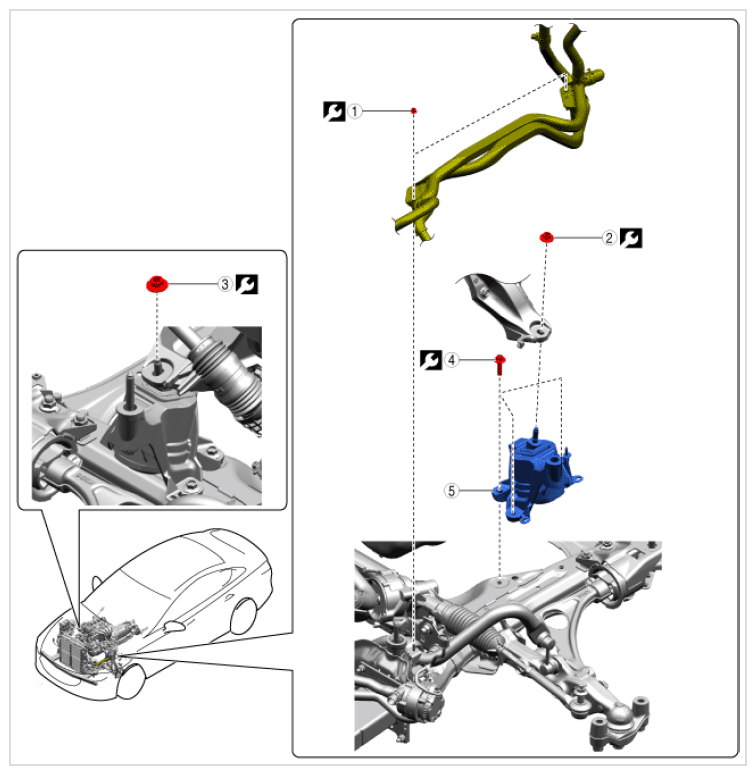

Fig 1: Engine Mount (LH) Components Location With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Nut	9.5 N.m {95 kgf.cm, 82 in.lbf}
2	Nut (See NUT REMOVAL NOTE ) (See ENGINE MOUNT (LH) INSTALLATION NOTE )	98 N.m {10 kgf.m, 72.45 ft.lb}
3	Nut (See Nut removal note ) (See NUT INSTALLATION NOTE )	98 N.m {10 kgf.m, 72.45 ft.lb}
4	Bolt (See Bolt removal note ) (See ENGINE MOUNT (LH) INSTALLATION NOTE )	50 N.m {5.1 kgf.m, 36.9 ft.lb}
5	Engine mount (LH) (See ENGINE MOUNT (LH) REMOVAL NOTE ) (See ENGINE MOUNT (LH) INSTALLATION NOTE )	-
