Nut removal note
WARNING: This page is about a different variant/trim than selected.

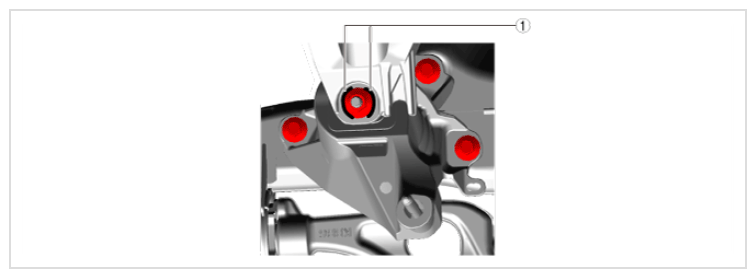

- Place alignment marks at the positions shown in the figure below so that they can be assembled to the same positions as before removal.
 Courtesy of MAZDA MOTORS CORP.
|
SYMBOL AND CONTENT DESCRIPTION
| Symbol |
Content |
| 1 |
Alignment mark |
- Remove the nuts.
- Place alignment marks at the positions shown in the figure below so that they can be assembled to the same positions as before removal.
 Courtesy of MAZDA MOTORS CORP.
|
SYMBOL AND CONTENT DESCRIPTION
| Symbol |
Content |
| 1 |
Alignment mark |
- Remove the nuts.
