Rear Vent Duct Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    2. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)
    3. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
    4. Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    5. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    6. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    7. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    8. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
  3. Remove the fastener.

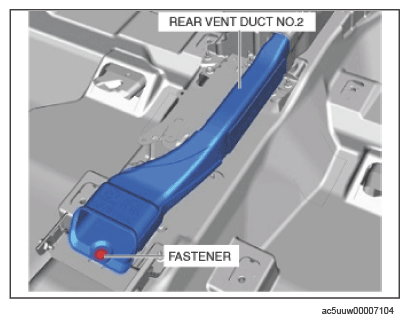

    G15641067Courtesy of MAZDA MOTORS CORP.
  4. Remove rear vent duct No. 2.
  5. Remove the fastener.

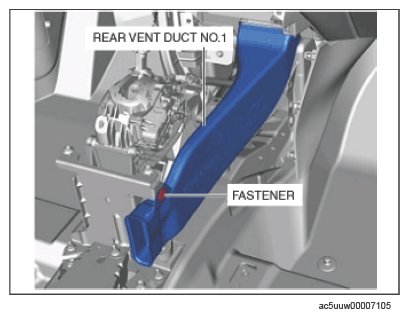

    G15641068Courtesy of MAZDA MOTORS CORP.
  6. Remove rear vent duct No. 1.
  7. Install in the reverse order of removal.
