Cup Holder Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the console side panel. (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
  3. Remove the switch panel. (See SWITCH PANEL REMOVAL/INSTALLATION .)

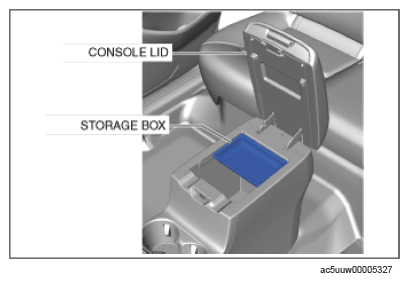

  4. Open the console lid and remove the storage box.
    G15642539Courtesy of MAZDA MOTORS CORP.

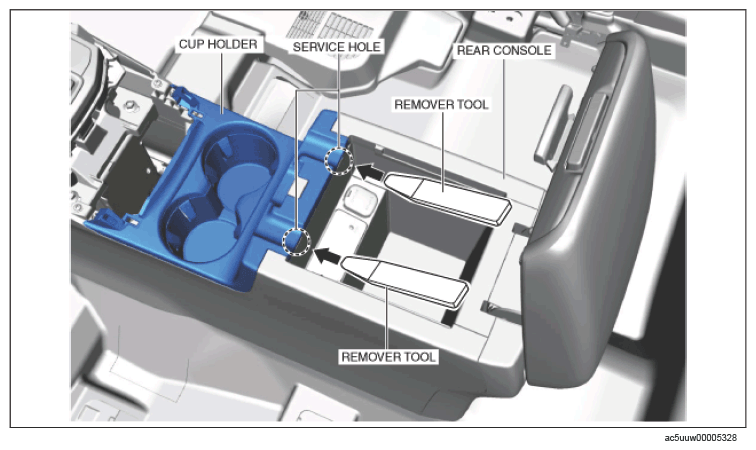

  5. Insert the remover tools into the service holes.
    G15642540Courtesy of MAZDA MOTORS CORP.

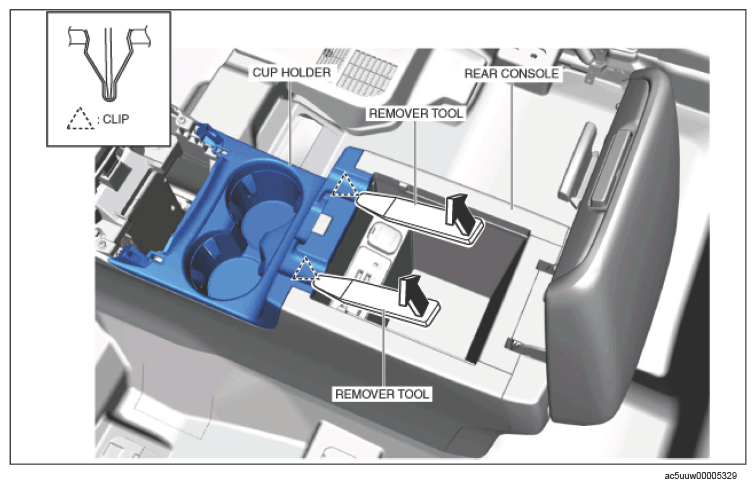

  6. Move the remover tools in the direction of the arrows shown in the figure and detach the clips from the rear console.
    G15642541Courtesy of MAZDA MOTORS CORP.

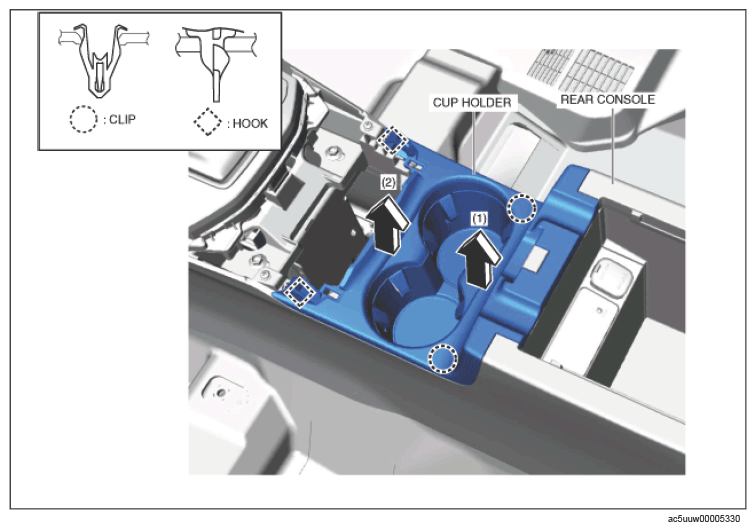

  7. Move the cup holder in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the clips and hooks.
    G15642542Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
