Console Side Panel Removal/Installation

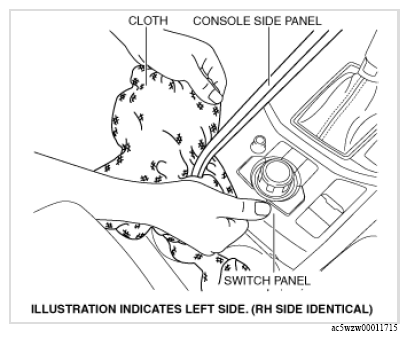

  1. Insert the clean cloth in the position shown in the figure.
    G13114866Courtesy of MAZDA MOTORS CORP.

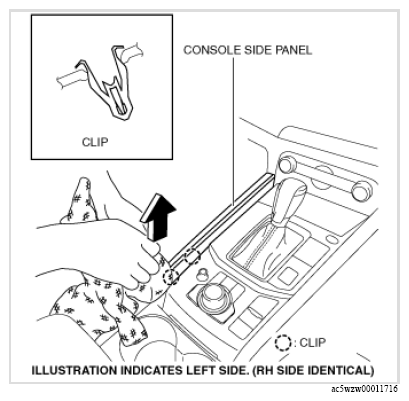

  2. Pull the clean cloth up in the direction of the arrow shown in the figure and remove the clips.
    G13114867Courtesy of MAZDA MOTORS CORP.

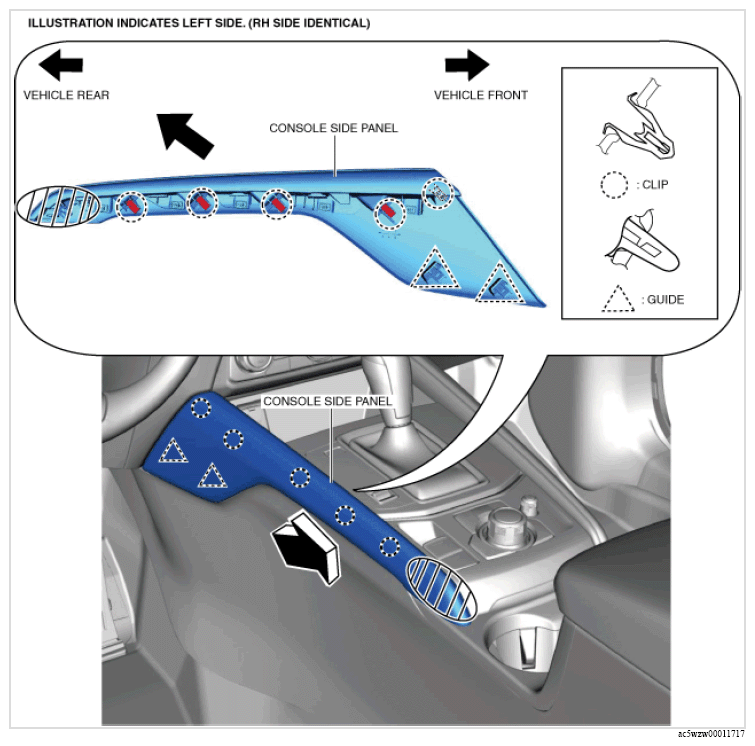

  3. Hold the shaded area shown in the figure, move the console side panel in the direction of the arrow, and remove it while detaching the clips and guides.
    G13114868Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
