Rear Console Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    2. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)
    3. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
    4. Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    5. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    6. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    7. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)

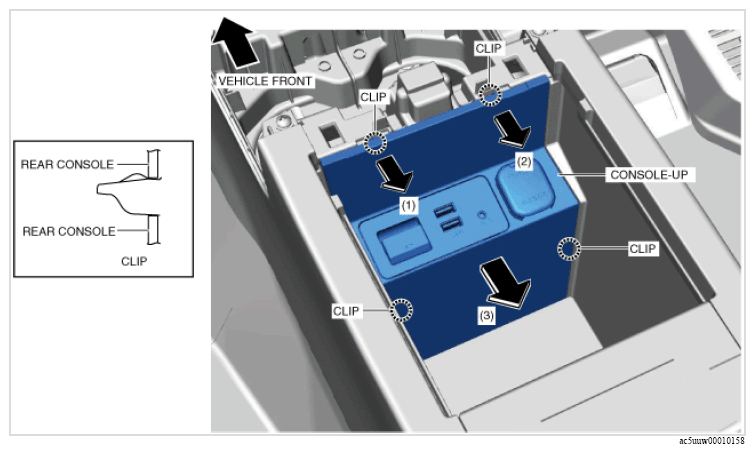

  3. Using a remover tool, detach the clips in the order of arrows (1) and (2) shown in the figure.
    G13115018Courtesy of MAZDA MOTORS CORP.
  4. Move the console-up in the direction of arrow (3) shown in the figure and detach the clips.

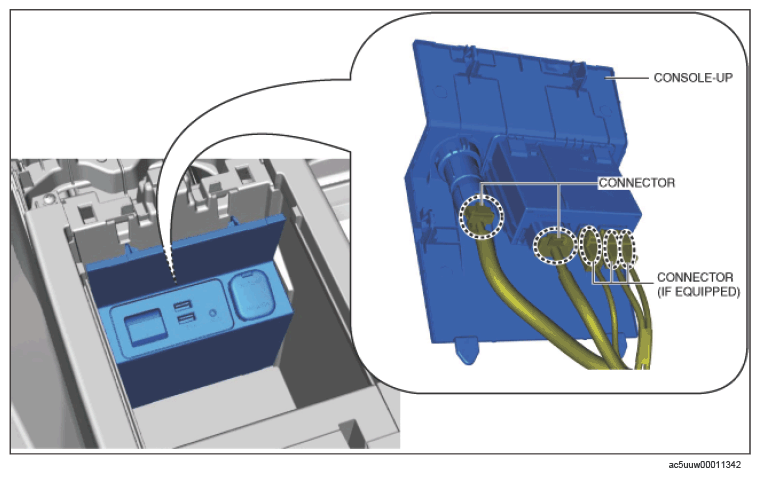

  5. Disconnect the connectors.
    G15642688Courtesy of MAZDA MOTORS CORP.

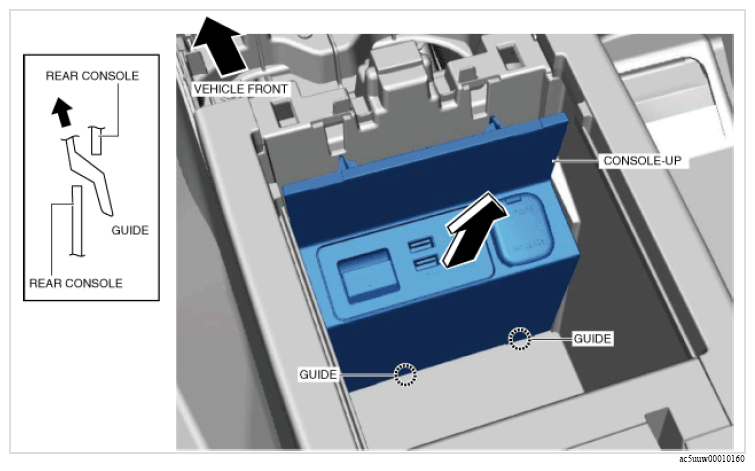

  6. Move the console-up in the direction of the arrow shown in the figure, detach the guides from the rear console, and remove the console-up.
    G13115021Courtesy of MAZDA MOTORS CORP.

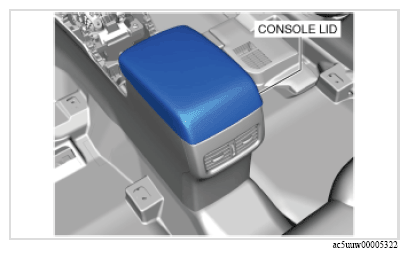

  7. Close the console lid.
    G13115022Courtesy of MAZDA MOTORS CORP.

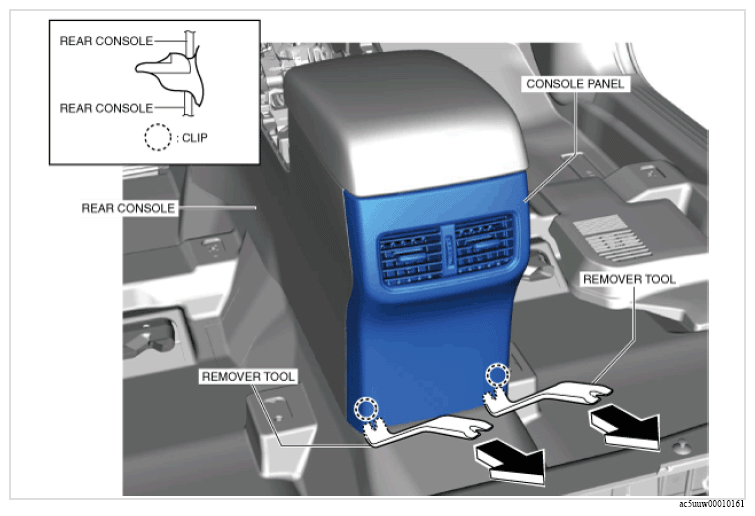

  8. Insert the remover tool into the position shown in the figure, move it in the direction of the arrows, and detach the clips.
    G13115023Courtesy of MAZDA MOTORS CORP.

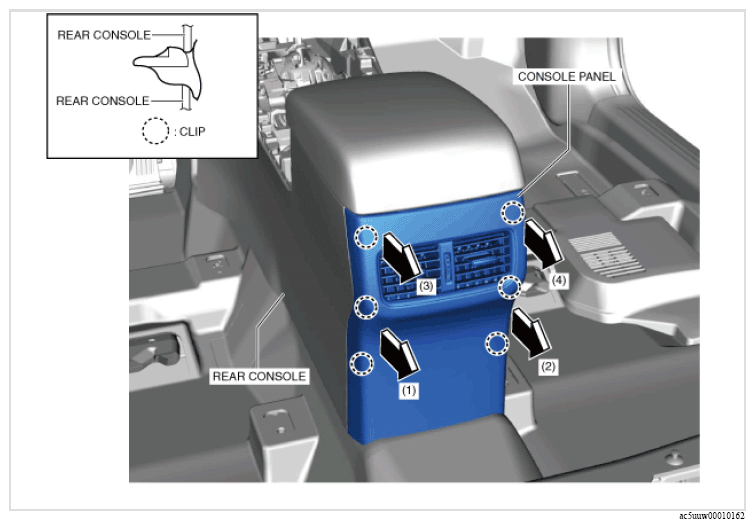

  9. Move the console panel in the order of arrows (1), (2), (3), and (4) shown in the figure, and detach the clips.
    G13115024Courtesy of MAZDA MOTORS CORP.
  10. Remove the console panel from the rear console.

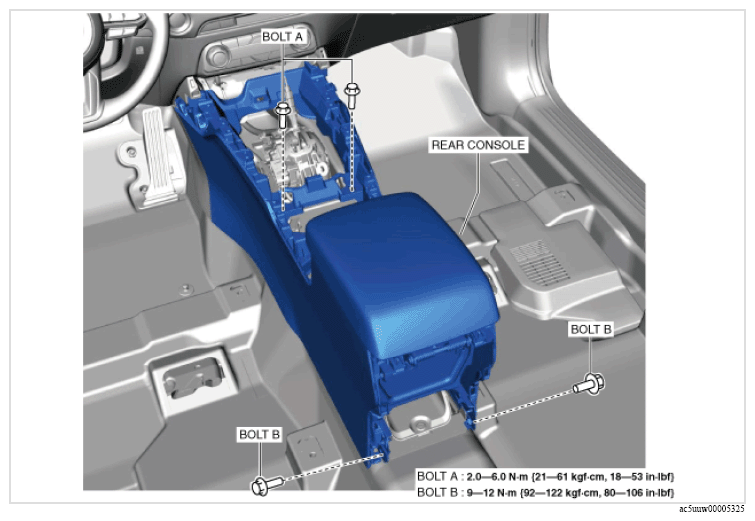

  11. Remove bolts A and bolts B.
    Fig 1: Rear Console And Bolts With Torque Specification
    G13115025Courtesy of MAZDA MOTORS CORP.

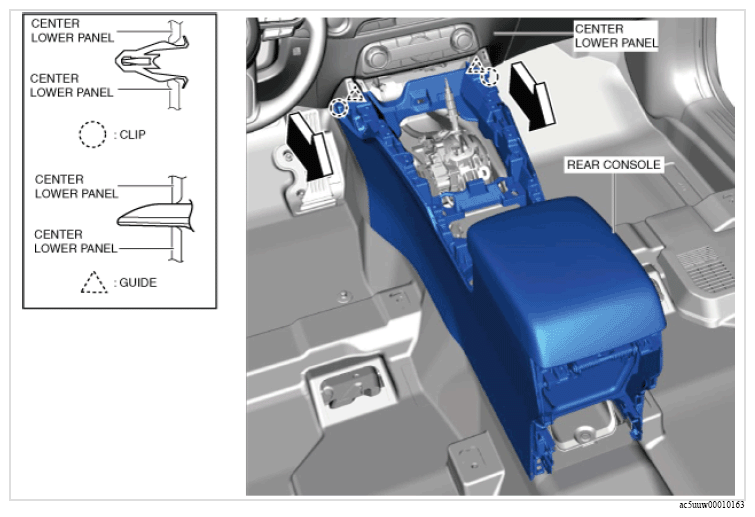

  12. Move the rear console in the direction of the arrows shown in the figure, detach the clips and guides from the center lower panel, and remove the rear console.
    G13115026Courtesy of MAZDA MOTORS CORP.
  13. Install in the reverse order of removal.
