Cluster Switch Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Driver-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Driver-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)

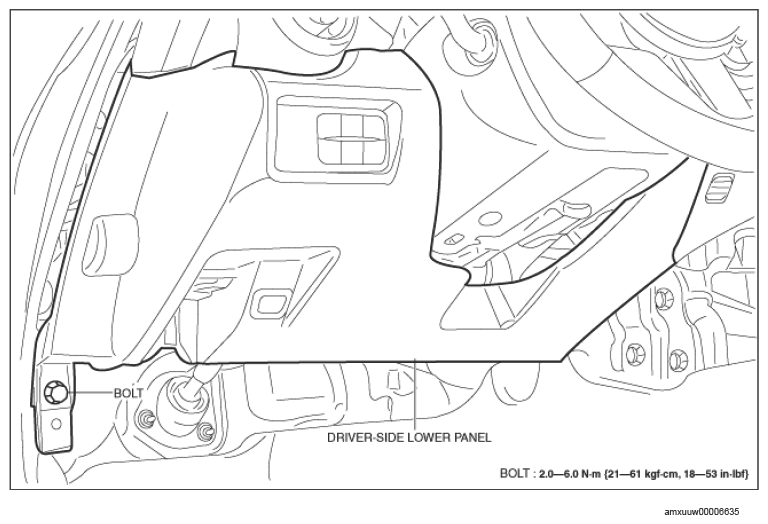

  3. Remove the bolt.
    Fig 1: Driver-Side Lower Panel Bolt With Torque Specification
    G14602957Courtesy of MAZDA MOTORS CORP.

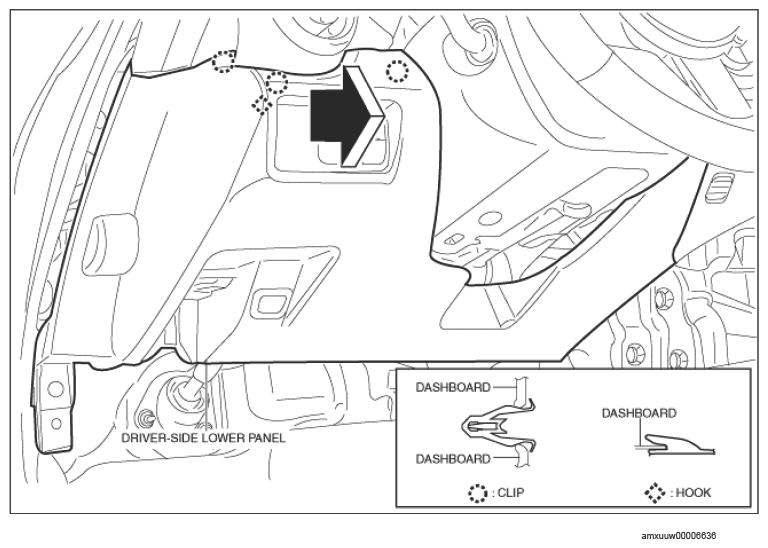

  4. Move the driver-side lower panel in the direction of the arrow shown in the illustration to a position where the cluster switch can be removed and detach the clips and hook from the dashboard.
    G14602958Courtesy of MAZDA MOTORS CORP.
  5. Partially peel back the driver-side lower panel to the position where the cluster switch is visible.
  6. Disconnect the cluster switch connector.

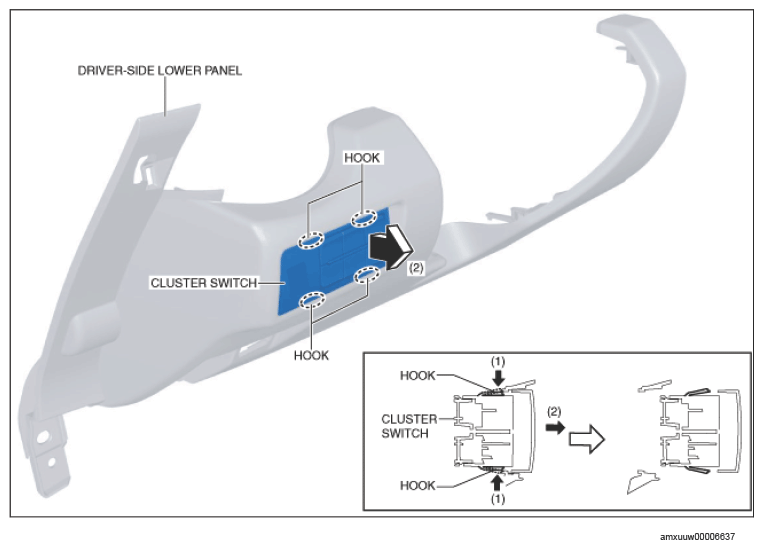

  7. Press the hooks in the directions of arrows (1) shown in the illustration and remove the cluster switch in the direction of arrow (2) while detaching the hooks from the driver-side lower panel.
    G14602959Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
