Front Combination Light Removal/Installation

NOTE:

Fogging or condensation on the inside of the front combination lights may occur due to a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the combination lights. However, it has no effect on the light performance because the temperature inside the front combination lights rises after illuminating the headlights or a period of time has elapsed.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the front bumper. (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
Remove the front bumper slider. (See FRONT BUMPER SLIDER REMOVAL/INSTALLATION .)
Remove the bolt.

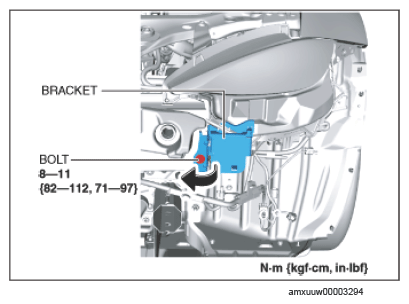

Fig 1: Bracket Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Move the bracket in the direction of the arrow.
CAUTION:
- When removing the front combination light from the body, it could interfere with the body and cause scratching or damage to the body. When removing the front combination light from the body, apply protective tape to the body.

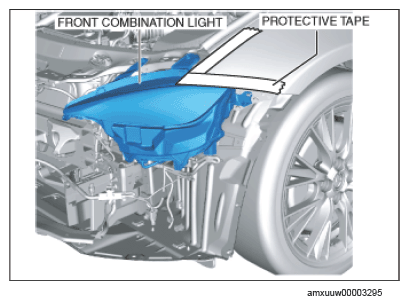

To prevent scratches or damage, affix protective tape to the position shown in the illustration.

Courtesy of MAZDA MOTORS CORP.

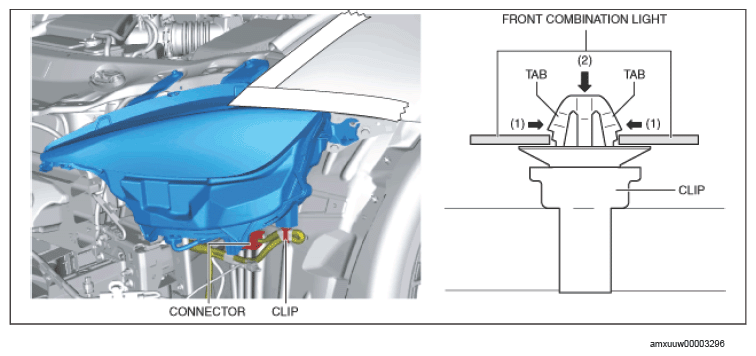

While pressing the clip tabs in the direction of arrows (1) shown in the illustration, press the clip in the direction of arrow (2) to detach the clip tabs from the front combination light.

Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.
Remove the bolts in the order of (1), (2), and (3).

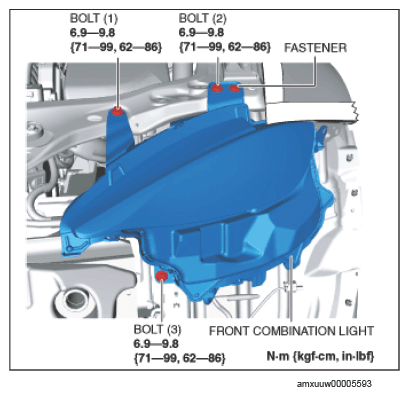

Fig 2: Front Combination Light, Fastener And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the fastener.

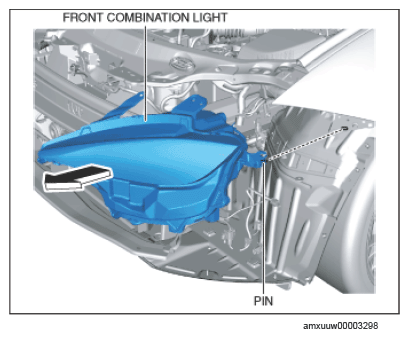

Pull the front combination light in the direction of the arrow shown in the illustration and remove the front combination light.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the headlight aiming. (See HEADLIGHT AIMING .)
