Front Bumper Removal

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

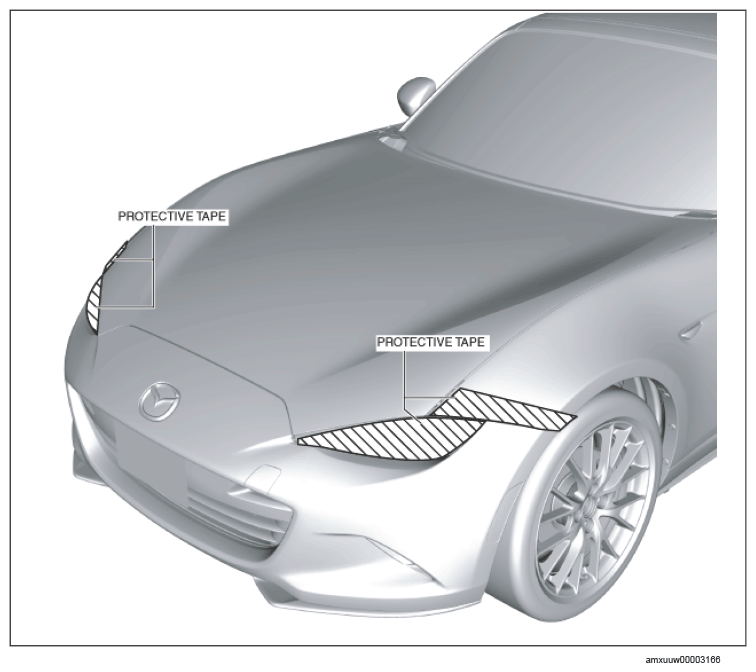

To prevent scratches or damage, apply protective tape to the positions shown in the illustration.

Courtesy of MAZDA MOTORS CORP.

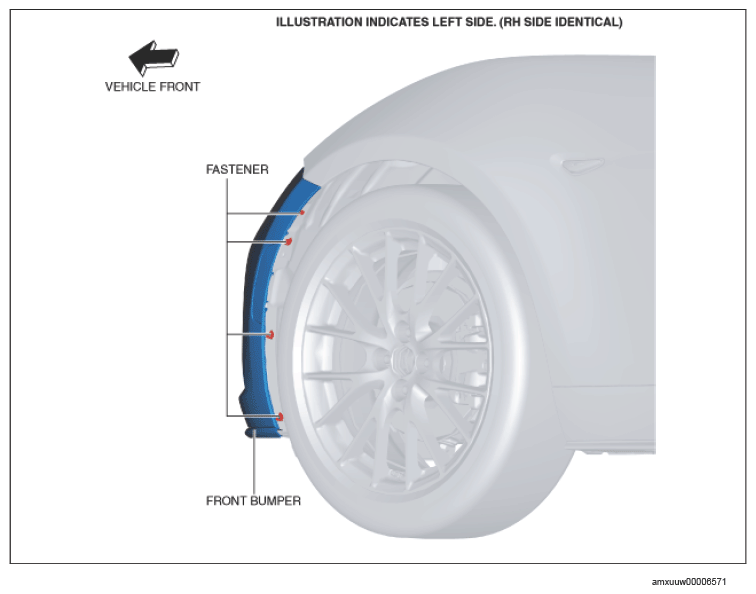

Remove the fasteners.

Courtesy of MAZDA MOTORS CORP.

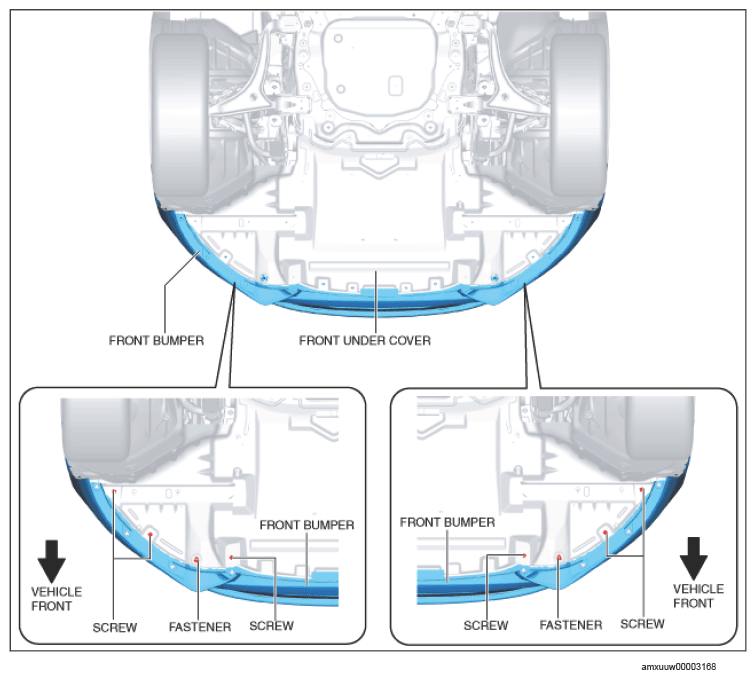

Remove the screws and fasteners.

Courtesy of MAZDA MOTORS CORP.

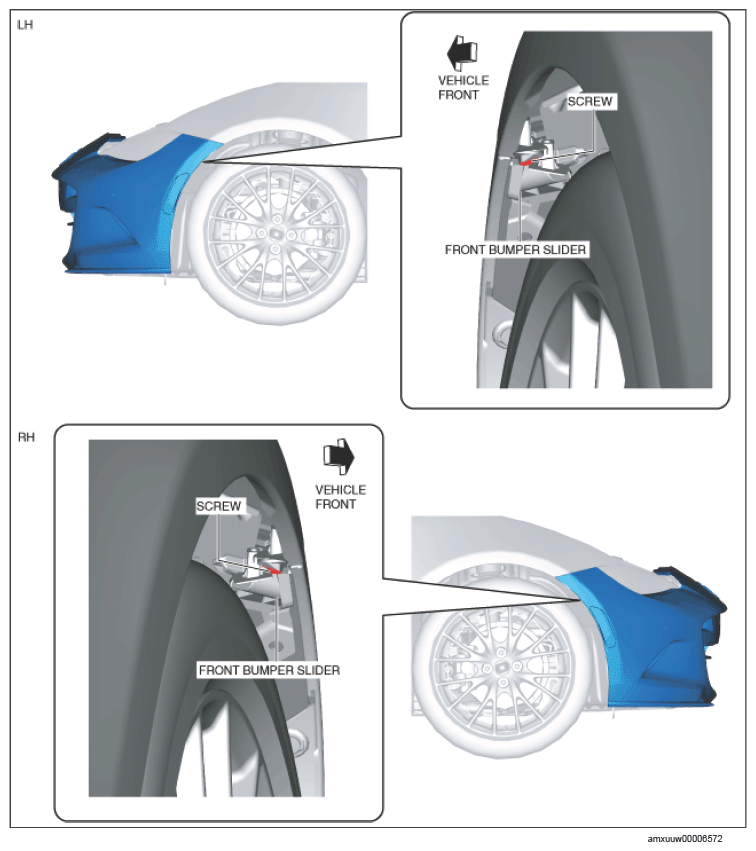

Partially peel back front mudguard No. 2 and remove the screws.

Courtesy of MAZDA MOTORS CORP.

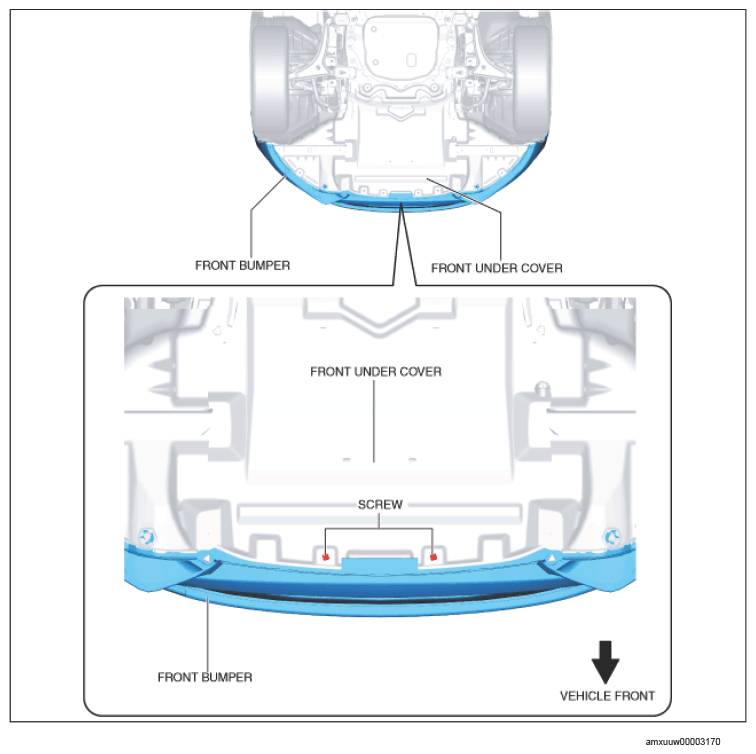

Remove the screws.

Courtesy of MAZDA MOTORS CORP.

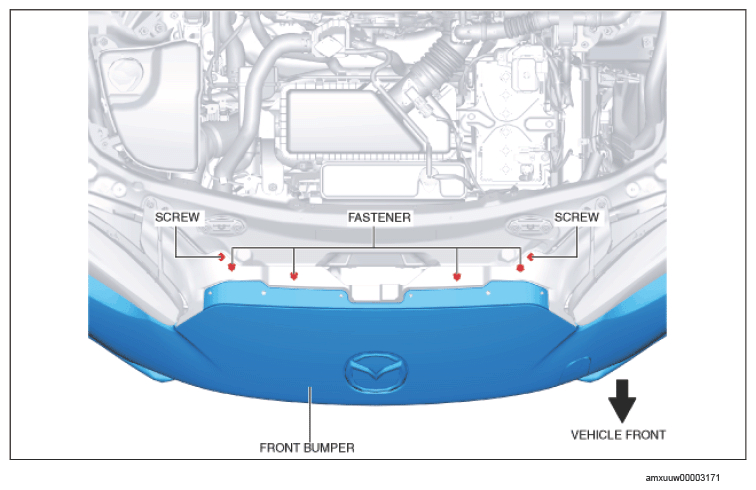

Remove the screws and fasteners.

Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Carefully remove the front bumper from the front bumper slider. If the front bumper is removed from the front bumper slider with excessive force, the front bumper hooks may be damaged because the front bumper and the front bumper slider are engaged firmly.
- Detach the front bumper hooks from the front bumper slider using two people, one person supports the front bumper. If the front bumper hooks are detached from the front bumper without supporting the front bumper, it may fall off and be damaged.

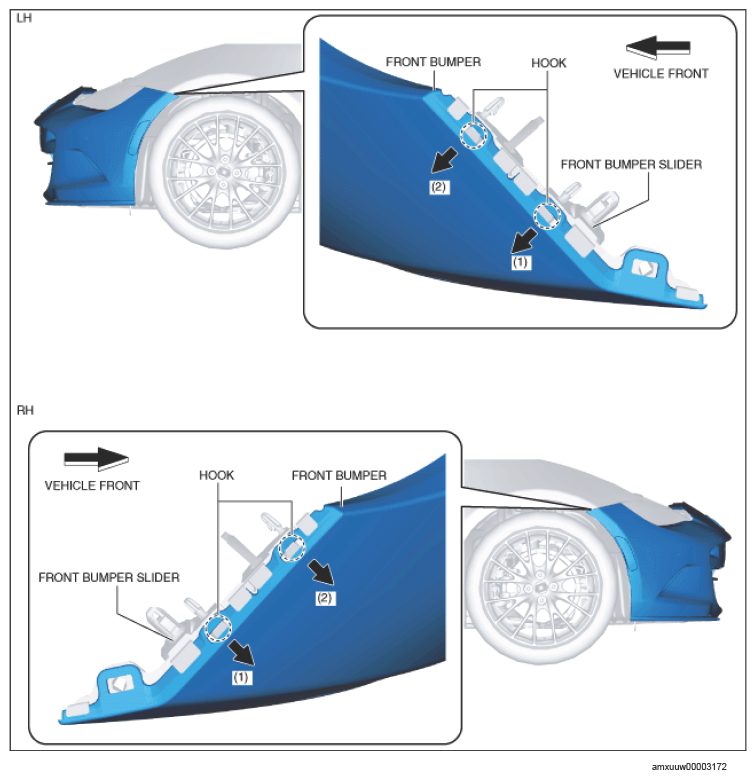

Pull the front bumper in the direction of the arrows in the order shown in the illustration, and detach the front bumper hooks from the front bumper slider.

Courtesy of MAZDA MOTORS CORP.

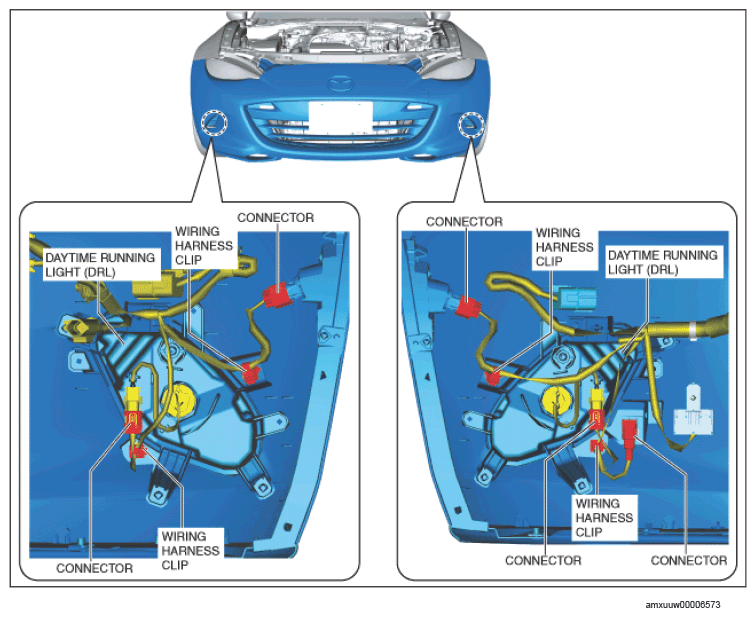

Disconnect the connectors.

Courtesy of MAZDA MOTORS CORP.
Remove the wiring harness clips.
Remove the front bumper.
