Front Bumper Installation

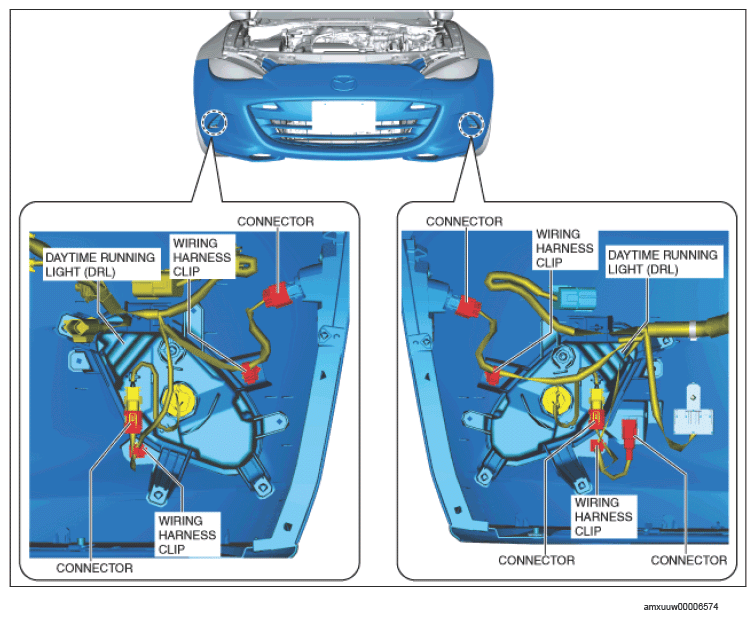

Connect the connectors.

Courtesy of MAZDA MOTORS CORP.
Install the wiring harness clips.

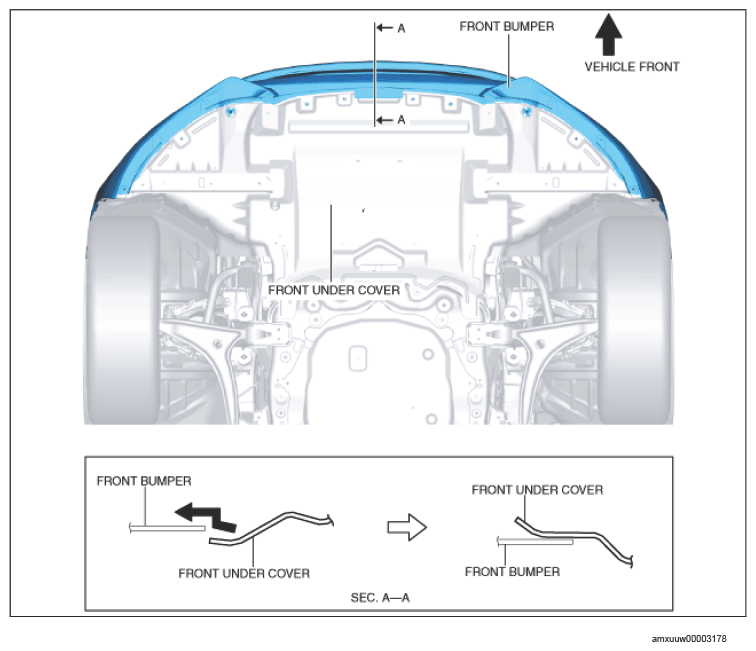

Move the front under cover in the direction of the arrow shown in the illustration and remove it.

Courtesy of MAZDA MOTORS CORP.

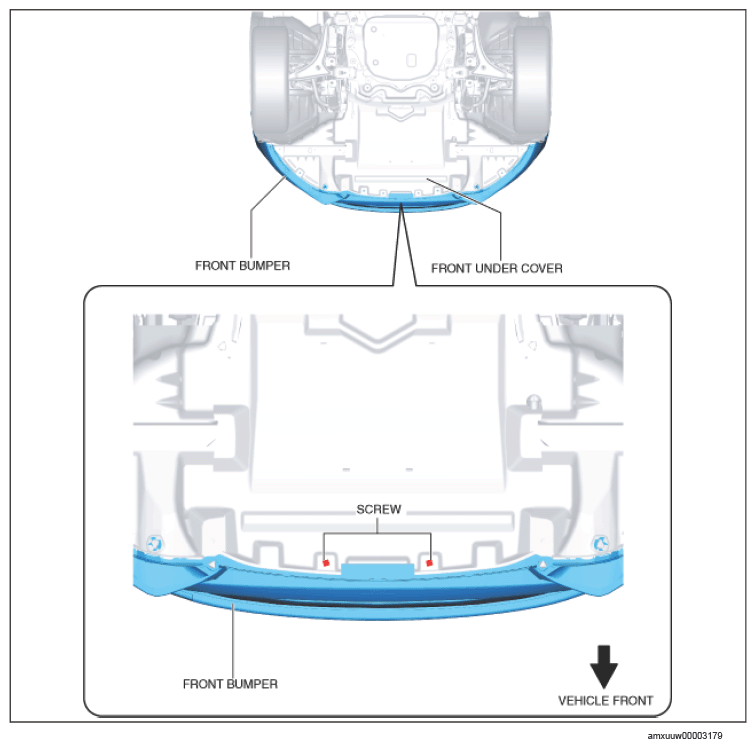

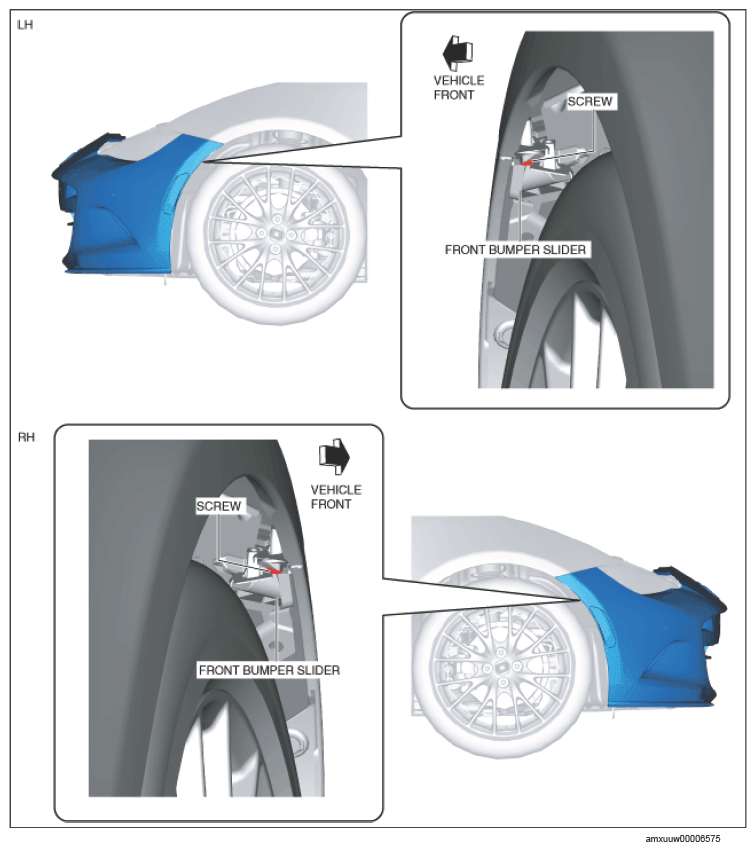

Install the screws.

Courtesy of MAZDA MOTORS CORP.

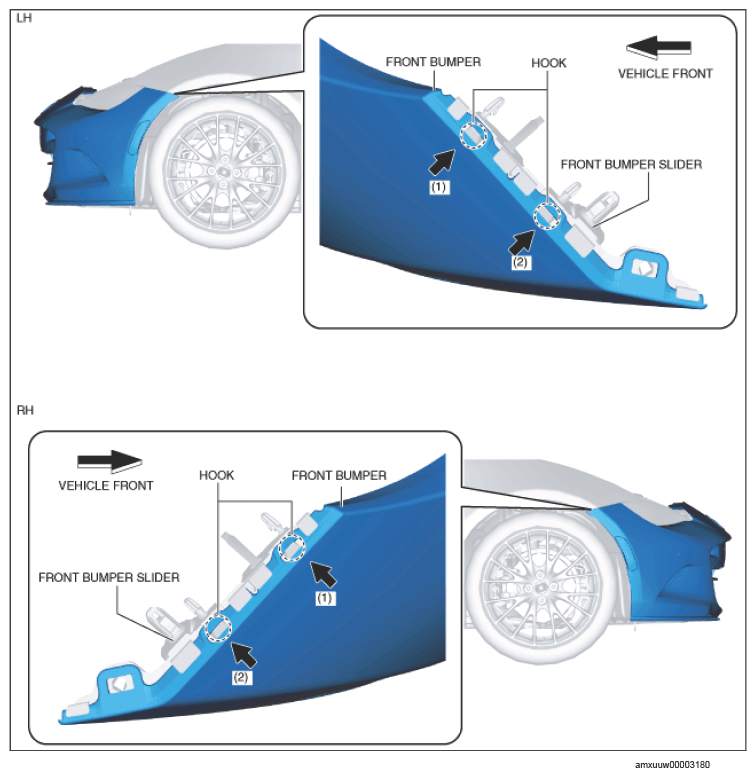

Install the front bumper to the front bumper slider in the order of the arrows shown in the illustration.

Courtesy of MAZDA MOTORS CORP.

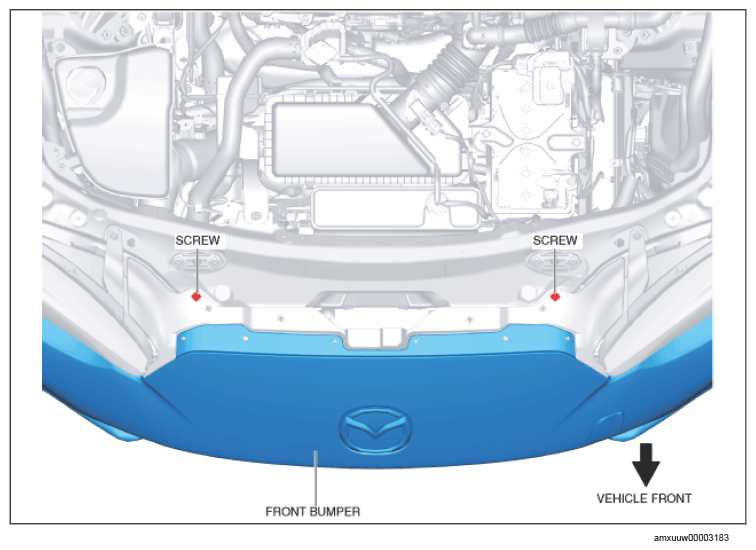

Install the screws.

Courtesy of MAZDA MOTORS CORP.

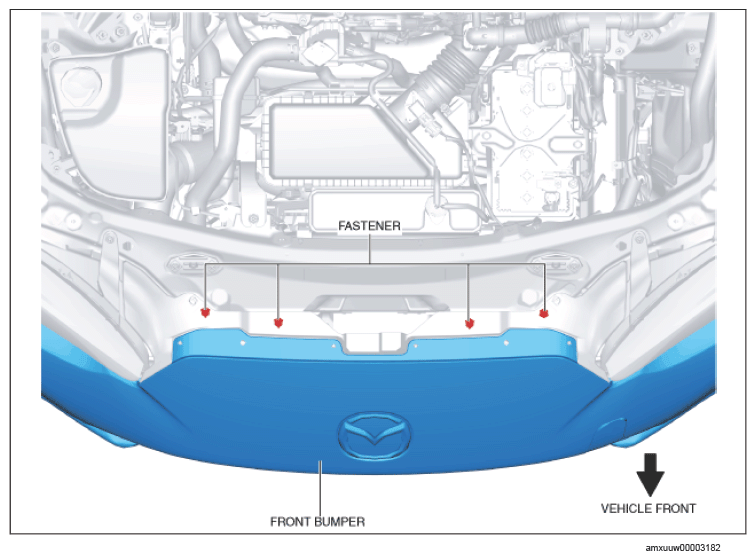

Install the fasteners.

Courtesy of MAZDA MOTORS CORP.

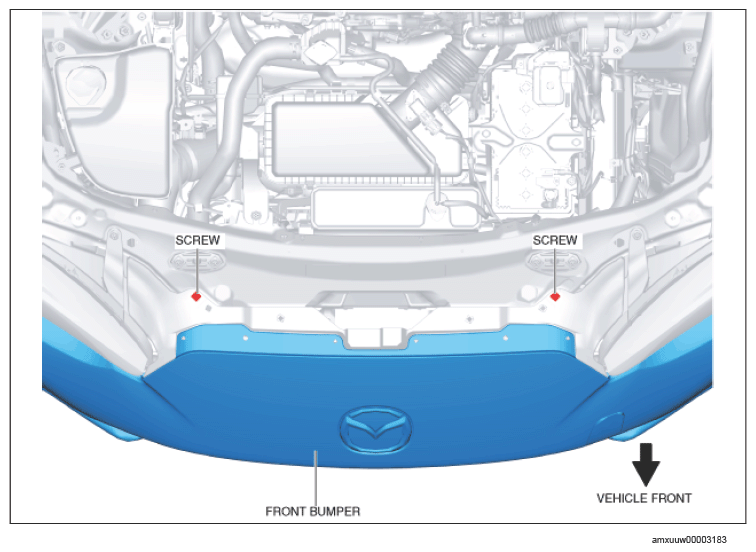

Temporarily tighten the screws.

Courtesy of MAZDA MOTORS CORP.

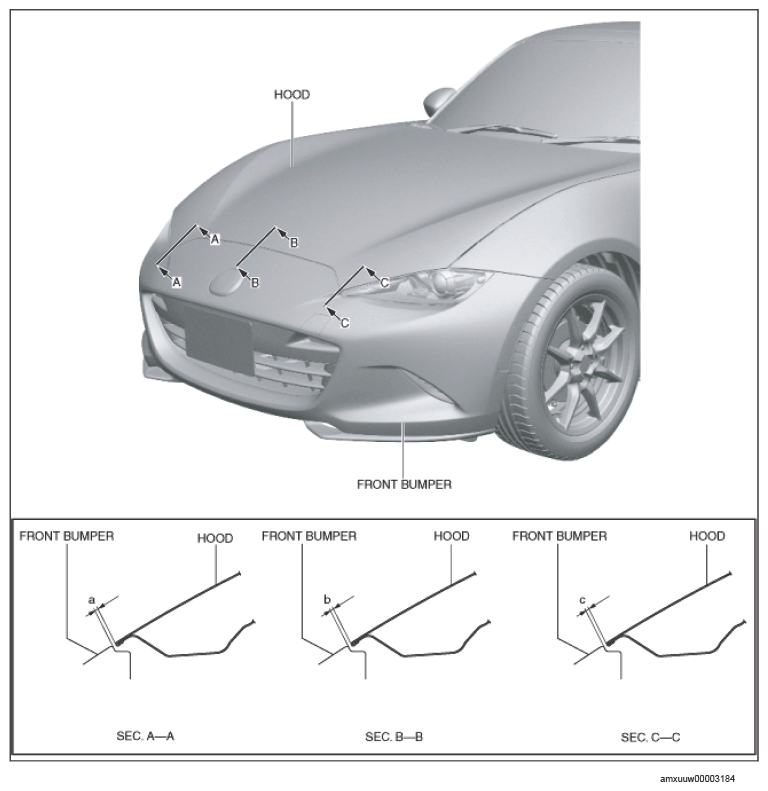

Adjust the front bumper position so that the clearance between the front bumper and the hood is within the specification.

Courtesy of MAZDA MOTORS CORP.

Standard clearance
1. 1.7-5.3 mm {0.07-0.20 in}
2. 1.7-5.3 mm {0.07-0.20 in}
3. 1.7-5.3 mm {0.07-0.20 in}
Completely tighten the screws tightened temporarily in Step 8.

Courtesy of MAZDA MOTORS CORP.
Measure the clearance between the front bumper and the hood and verify that it is within the standard clearance.

Courtesy of MAZDA MOTORS CORP.

Standard clearance
1. 1.7-5.3 mm {0.07-0.20 in}
2. 1.7-5.3 mm {0.07-0.20 in}
3. 1.7-5.3 mm {0.07-0.20 in}
- If not within the specification, repeat from Step 8 to Step 11 until the clearance between the front bumper and the hood is within the specification.

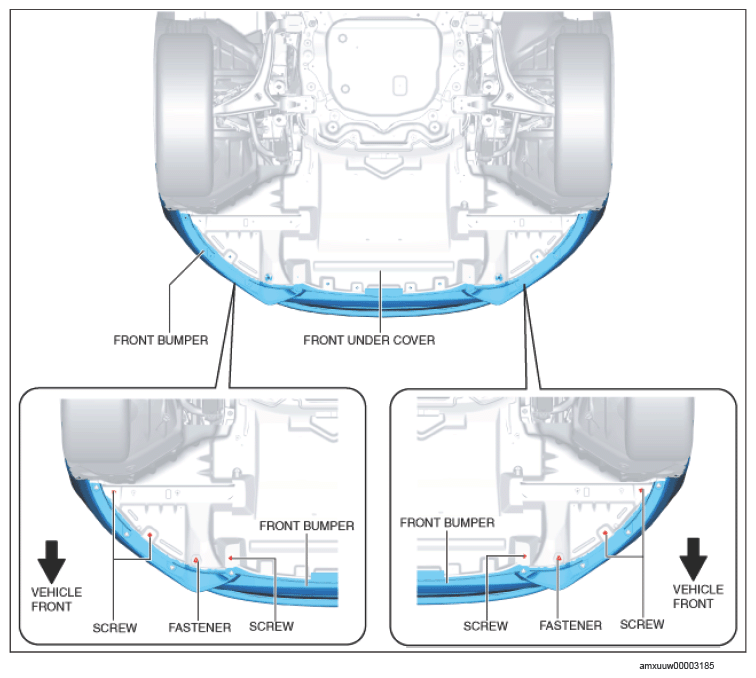

Install the screws and fasteners.

Courtesy of MAZDA MOTORS CORP.

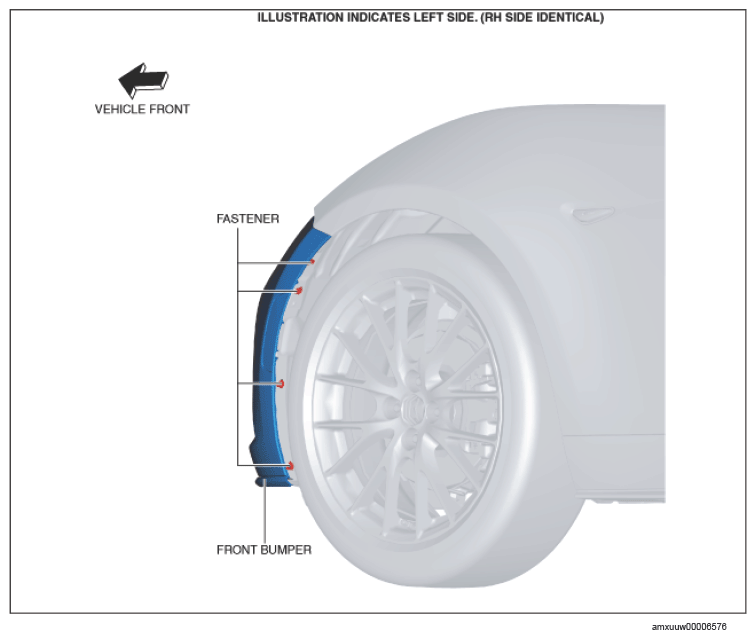

Install the fasteners.

Courtesy of MAZDA MOTORS CORP.
Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
