Front Bumper Slider Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
  3. Remove the screw and bolt.

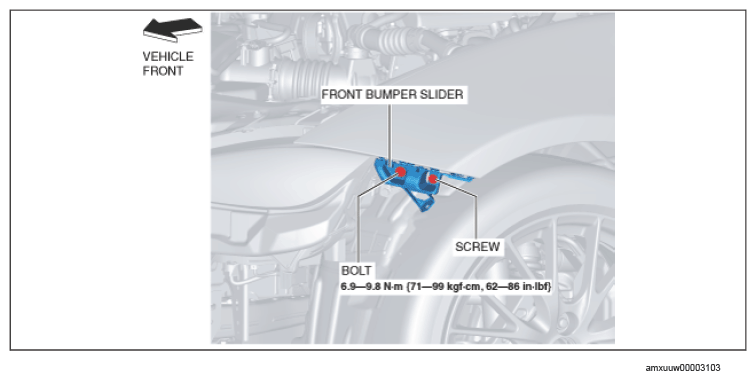

    Fig 1: Front Bumper Slider, Screw And Bolt With Torque Specification
    G14595234Courtesy of MAZDA MOTORS CORP.

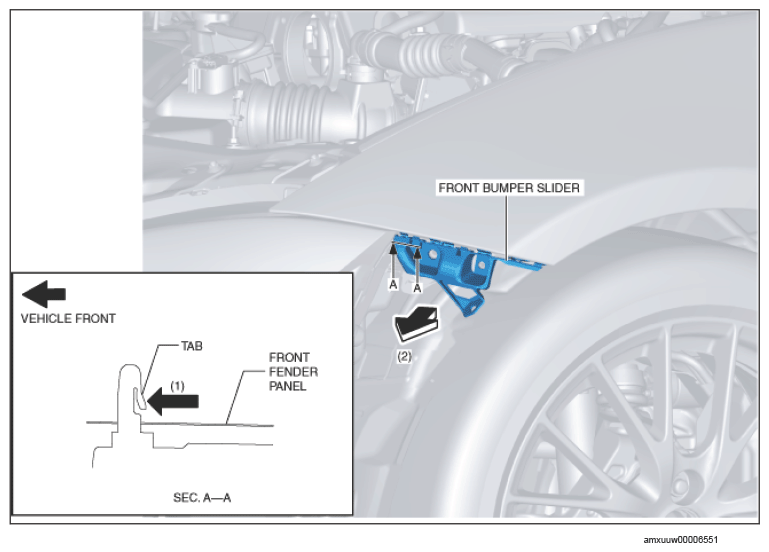

  4. While pressing tab in the direction of arrow (1), remove the front bumper slider in the direction of arrow (2).
    G14595235Courtesy of MAZDA MOTORS CORP.
  5. Remove the front bumper slider.
  6. Install in the reverse order of removal.
