Water Hose: Notes

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION ).
Remove the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [VIN M] ).
- Air cleaner cover
- Air cleaner element
- Fresh-air duct
- Air cleaner case
- Air hose
- Resonance chamber
Remove the battery. (See BATTERY REMOVAL/INSTALLATION [VIN M] ).
Remove the PCM component. (See PCM REMOVAL/INSTALLATION [VIN M] ).
Remove the battery tray. (See BATTERY REMOVAL/INSTALLATION [VIN M] ).
Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION ).
Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [VIN M] ).
Remove in the order indicated in the table.
Install in the reverse order of removal.
Add the engine coolant. (See ENGINE COOLANT REPLACEMENT [VIN M] ).

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

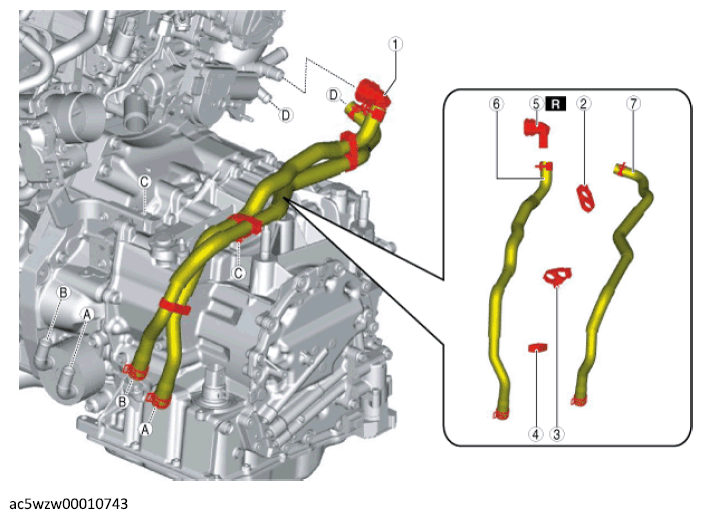

1	Water hose component (See Water hose No. 1 (engine coolant control valve side) removal note ). (See Water hose No. 1 and No. 2 (oil cooler side) installation note ). (See Water hose No. 1 (engine coolant control valve side) installation note ). (See Water hose No. 2 (water pipe side) installation note ).
2	Hose clip No. 1
3	Hose clip No. 2
4	Hose clip No. 3
5	Quick release connector
6	Water hose No. 1 (See Water hose No. 1 (engine coolant control valve side) removal note ). (See Water hose No. 1 and No. 2 (oil cooler side) installation note ). (See Water hose No. 1 (engine coolant control valve side) installation note ).
7	Water hose No. 2 (See Water hose No. 1 and No. 2 (oil cooler side) installation note ). (See Water hose No. 2 (water pipe side) installation note ).
