Water hose No. 2 (water pipe side) installation note
WARNING: This page is about a different variant/trim than selected.

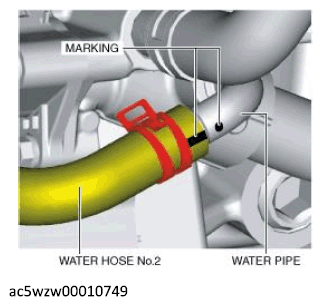

- Install water hose No. 2 to the water pipe as shown in the figure with the hose clamp expanded.NOTE:
- A new water hose No. 1 and hose clamp are attached.

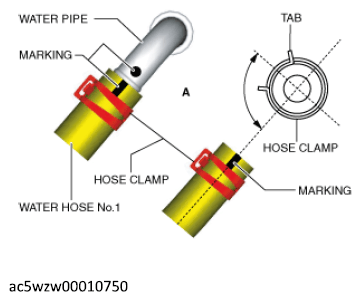

- Install the hose clamp so that it is within area A shown in the figure.
- Verify that the hose clamp does not interfere with the surrounding accessories.
