Water hose No. 1 (engine coolant control valve side) removal note

WARNING: This page is about a different variant/trim than selected.

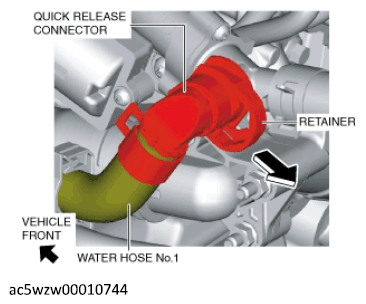

  1. Move the retainer in the direction of the arrow shown in the figure.
    G12189206Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the quick release connector from the engine coolant control valve.
