Water hose No. 1 and No. 2 (oil cooler side) installation note
WARNING: This page is about a different variant/trim than selected.

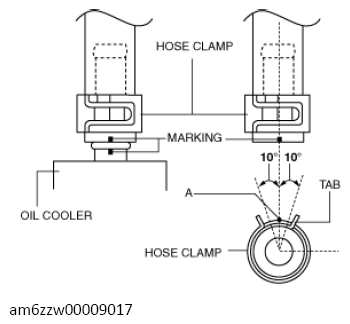

- Install the water hose to the oil cooler as shown in the figure with the hose clamp expanded.NOTE:
- A new water hose and hose clamp are attached.
- Install the hose clamp so that center A of the hose clamp tab is within the range shown in the figure.
- Verify that the installation angle of the hose clamp is within the range shown in the figure.
- Verify that the hose clamp does not interfere with any other components.
