Antenna Feeder No. 1 Removal/Installation (Us): Notes

Replacement part

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
2. Remove the following parts:
   1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION (US) .)
   2. Sunvisor (See SUN VISOR REMOVAL/INSTALLATION )
   3. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION (US) .)
   4. Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION .)
   5. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
   6. Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
   7. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
   8. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
   9. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
   10. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
3. Remove the bolts.
   Fig 1: Headliner And Bolts With Torque Specification

   Courtesy of MAZDA MOTORS CORP.

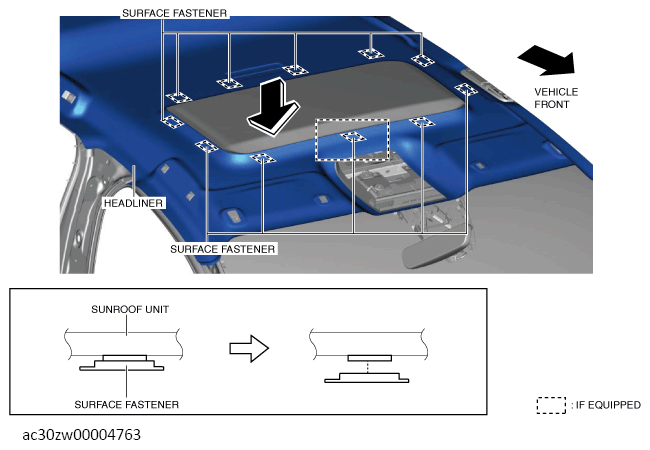

4. Move the headliner in the direction of the arrows shown in the illustration and detach the surface fasteners from the sunroof unit. (with sunroof system)

   Courtesy of MAZDA MOTORS CORP.

5. Partially peel back the seaming welts.

   Courtesy of MAZDA MOTORS CORP.

6. Slide the headliner in the direction of the arrow shown in the illustration.

   Courtesy of MAZDA MOTORS CORP.

7. Set the headliner on front seats and rear seats.
8. Remove the bolt.

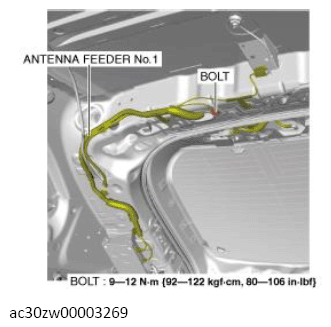

   Fig 2: Antenna Feeder No. 1 And Bolt With Torque Specification

   Courtesy of MAZDA MOTORS CORP.

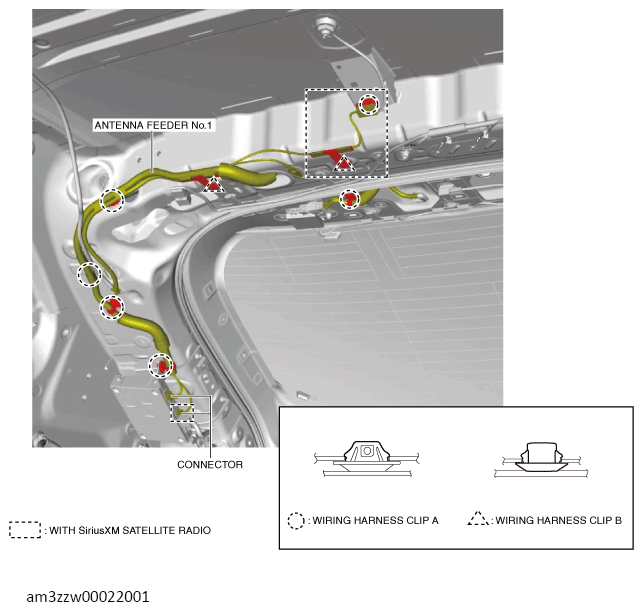

9. Disconnect the connectors and remove wiring harness clips A and B.

   Courtesy of MAZDA MOTORS CORP.

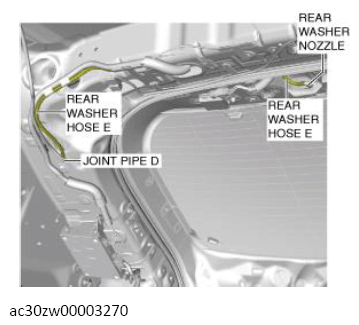

10. Disconnect rear washer hose E from the rear washer nozzle.

    Courtesy of MAZDA MOTORS CORP.

11. Disconnect rear washer hose E from the joint pipe D.

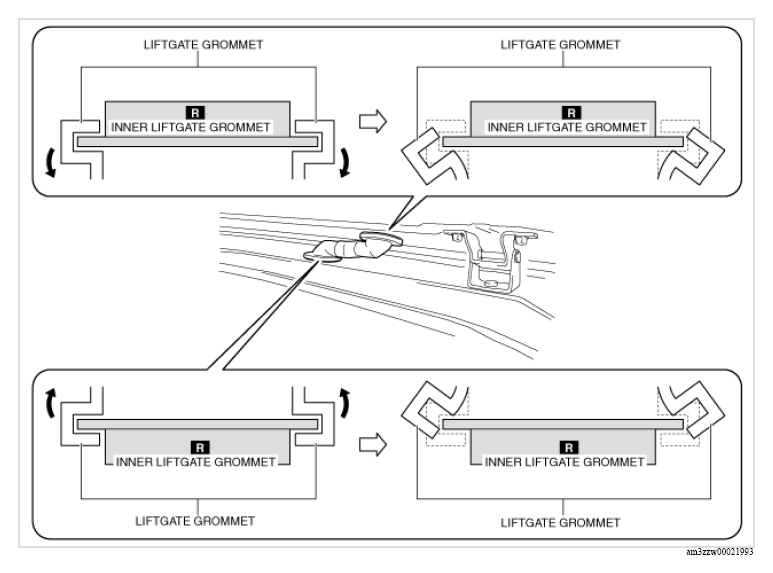

12. Partially peel the liftgate grommets in the direction of the arrows shown in the illustrations, and remove the liftgate grommets from the inner liftgate grommets.

    Courtesy of MAZDA MOTORS CORP.

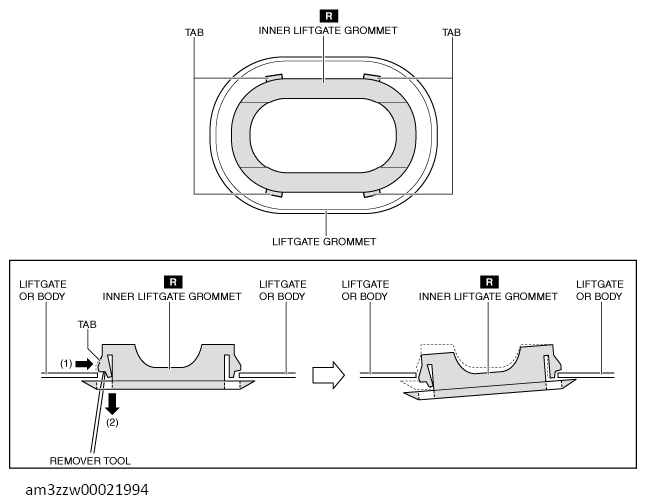

13. While pressing the inner liftgate grommet tab in the order of arrows (1) and (2) using the remover tool, remove each inner liftgate grommet from the liftgate and the body. (See LIFTGATE GROMMET INSTALLATION NOTE .)

    Courtesy of MAZDA MOTORS CORP.

14. Remove the antenna feeder No. 1.
15. Install in the reverse order of removal. (See HEADLINER INSTALLATION NOTE .)
