Liftgate Grommet Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Install the liftgate grommet using the following procedure.

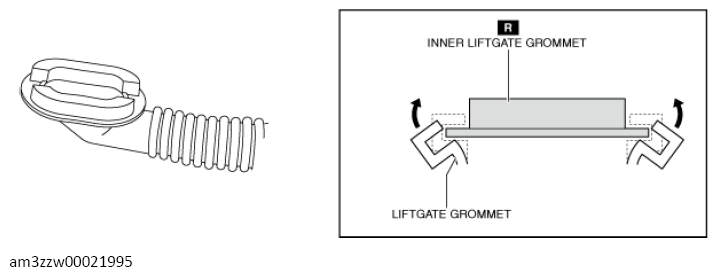

Engage a new inner liftgate grommet as shown in the illustration.

CAUTION:

If the inner liftgate grommet is removed once the attaching ability of the tabs weaken and it may cause leakage. Always replace it with a new one if it is removed once.

Courtesy of MAZDA MOTORS CORP.

Install the inner liftgate grommet to the liftgate grommet.

CAUTION:

Install the inner liftgate grommet so that there is no gap between the liftgate grommet and the inner liftgate grommet. Otherwise, it may cause water leakage.

Courtesy of MAZDA MOTORS CORP.

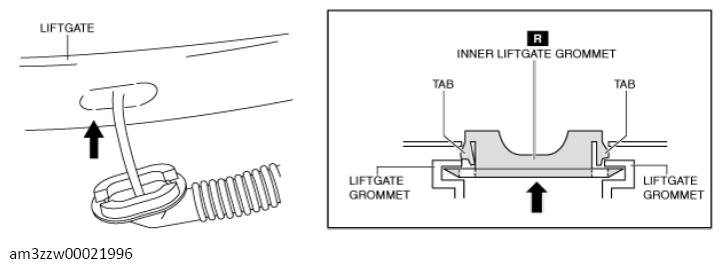

Move the inner liftgate grommet in the direction of the arrow shown in the illustration and engage the tabs of the inner liftgate grommet on the liftgate side.

CAUTION:

After installing the liftgate grommet, shake the inner liftgate grommet to verify that the tabs are securely engaged.

Courtesy of MAZDA MOTORS CORP.
