Lane-Keep Assist System Location Index

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

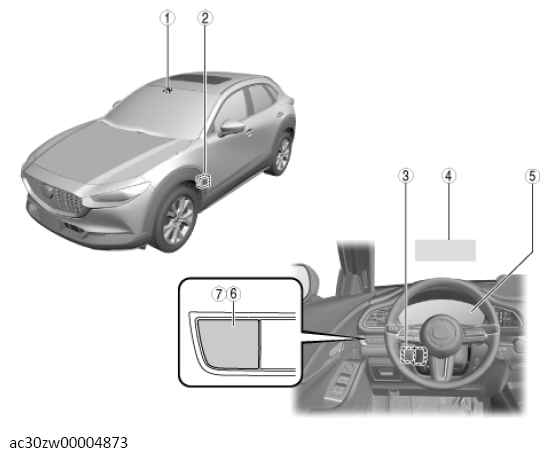

COMPONENT DESCRIPTION

1	Forward sensing camera (FSC) (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION .) (See FORWARD SENSING CAMERA (FSC) AIMING .) (See FORWARD SENSING CAMERA (FSC) INSPECTION .) (See FORWARD SENSING CAMERA (FSC) SYSTEM OPERATION RECORD .)
2	Body control module (BCM) (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION (US) .) (See BODY CONTROL MODULE (BCM) INSPECTION (US) .) (See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION (US) .) (See VCM INITIAL SETTING .)
3	EPS control module (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .) (See EPS CONTROL MODULE INSPECTION.)
4	Active driving display (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION (US) .) (See ACTIVE DRIVING DISPLAY INSPECTION .)
5	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY .) (See INSTRUMENT CLUSTER INSPECTION (US) .)
6	i-ACTIVSENSE switch (See I-ACTIVSENSE SWITCH REMOVAL/INSTALLATION .) (See I-ACTIVSENSE SWITCH INSPECTION .)
7	i-ACTIVSENSE OFF switch (See I-ACTIVSENSE OFF SWITCH REMOVAL/INSTALLATION .) (See I-ACTIVSENSE OFF SWITCH INSPECTION .)
