High-Mount Brake Light Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Side spoiler (See SIDE SPOILER REMOVAL/INSTALLATION .)
    3. Rear spoiler (See REAR SPOILER REMOVAL .) (See REAR SPOILER INSTALLATION .)

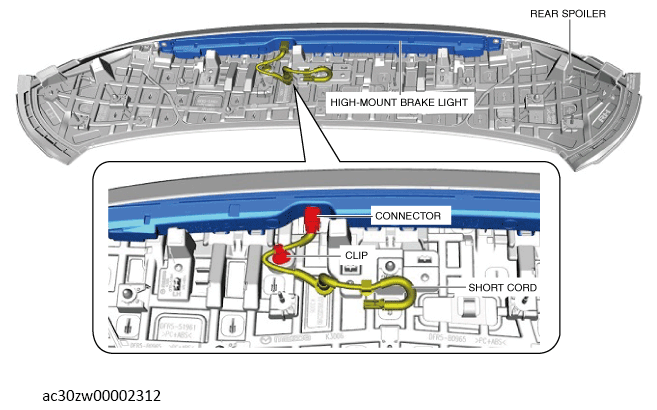

  3. Remove the clip.
    G13560873Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector.
  5. Remove the short cord.

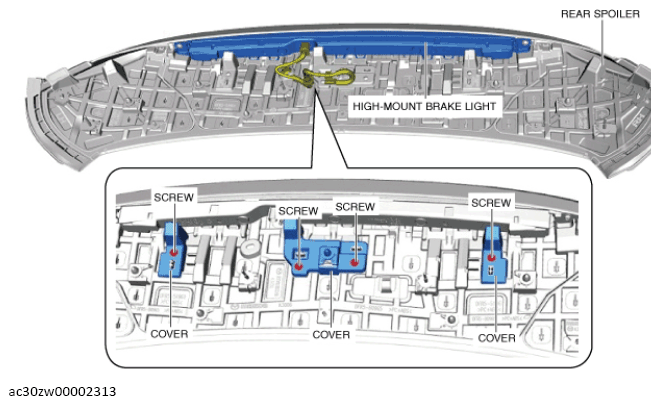

  6. Remove the screws.
    G13116849Courtesy of MAZDA MOTORS CORP.
  7. Remove the covers.

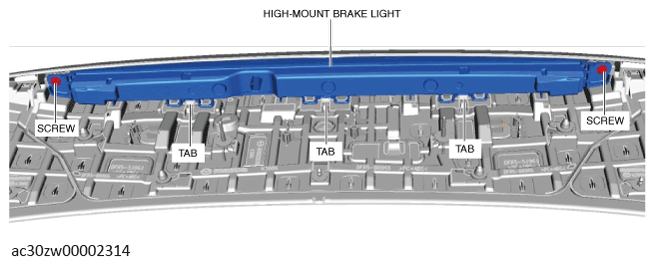

  8. Remove the screws.
    G13560874Courtesy of MAZDA MOTORS CORP.
  9. Remove the high-mount brake light while detaching the tab.
  10. Install in the reverse order of removal.
