Hood Hinge Removal/Installation: Removal

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Front over fender (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
    2. Upper face (See UPPER FACE REMOVAL/INSTALLATION .)
    3. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION (US) .)
    4. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
    5. Front bumper slider No. 1 (See BUMPER SLIDER REMOVAL/INSTALLATION .)
    6. Front door (See FRONT DOOR REMOVAL/INSTALLATION .)
    7. Rear deflector (See DEFLECTOR REMOVAL/INSTALLATION .)
    8. Side step molding (See SIDE STEP MOLDING REMOVAL .)
    9. Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION .)
    10. Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION .)
    11. Hood (See HOOD REMOVAL/INSTALLATION .)

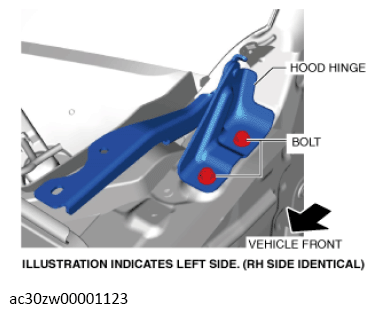

  3. Remove the bolts shown in the illustration and remove the hood hinge.
    G13559872Courtesy of MAZDA MOTORS CORP.
