Purge Solenoid Valve Removal/Installation (Us): Notes
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION (US) .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

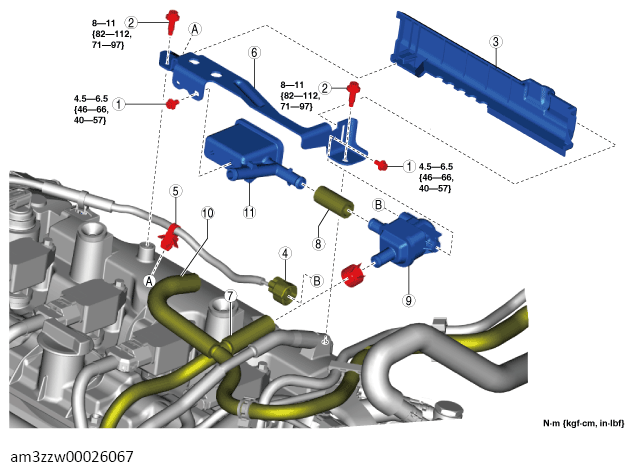

COMPONENT DESCRIPTION
| 1 | Bolt |
| 2 | Bolt |
| 3 | Insulator (See INSULATOR INSTALLATION NOTE .) |
| 4 | Purge solenoid valve connector |
| 5 | Wiring harness clip |
| 6 | Bracket |
| 7 | Evaporative hose No. 1 (See EVAPORATIVE HOSE NO. 1 INSTALLATION NOTE .) |
| 8 | Evaporative hose No. 2 (See EVAPORATIVE HOSE NO. 2 INSTALLATION NOTE .) |
| 9 | Purge solenoid valve |
| 10 | Evaporative hose No. 3 (See EVAPORATIVE HOSE NO. 3 INSTALLATION NOTE .) |
| 11 | Catch tank |
