Evaporative Hose No. 1 Installation Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the evaporative hose No. 1 as shown in the illustration.
 Courtesy of MAZDA MOTORS CORP.
|

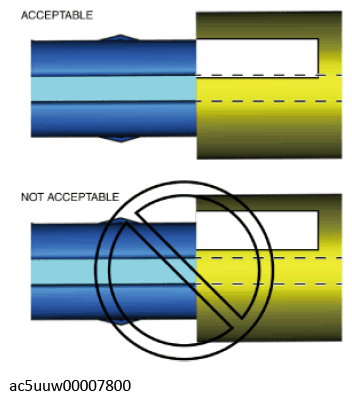

- Verify that a portion of the mark on evaporative hose No. 1 is covering the catch tank projection area.
- If the mark is completely off the projection area, adjust the mark so that it covers the projection area.
 Courtesy of MAZDA MOTORS CORP.
|
