Evaporative Hose No. 2 Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

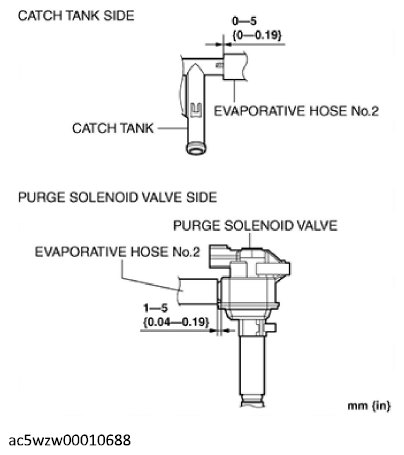

  1. Connect the evaporative hose No. 2 as shown in the illustration.
G12184430Courtesy of MAZDA MOTORS CORP.
