Insulator Installation Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

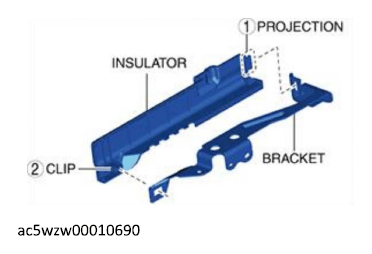

- Install the insulator to the bracket using the following procedure.
- Insert the insulator projection into the bracket.
 Courtesy of MAZDA MOTORS CORP.
|
- Insert the insulator clip into the bracket.
