Curtain Air Bag Module Removal/Installation (Us/CANADA): Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Replacement Part

Clip

Quantity: 1

Location of use: Curtain air bag module

WARNING:

Handling the curtain air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the curtain air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS (US/CANADA) .) (See AIR BAG SYSTEM SERVICE CAUTIONS (US/CANADA) .)

Switch the ignition off.
Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the following parts:
1. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION (US) .)
2. Sunvisor (See SUN VISOR REMOVAL/INSTALLATION .)
3. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
4. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION (US) .)
5. Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
6. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
7. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
8. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
9. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
10. Shift lever knob (MTX)
11. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
12. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
13. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
14. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
15. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
16. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
17. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION (US) .)
18. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL (US/CANADA) .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION (US/CANADA) .)
19. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
20. Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION .)
21. Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION .)
22. Rear vent duct (with rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION .)
23. Rear console bracket No. 1 (See REAR CONSOLE REMOVAL/INSTALLATION (US) .)
24. Headliner (See HEADLINER REMOVAL/INSTALLATION (US) .)

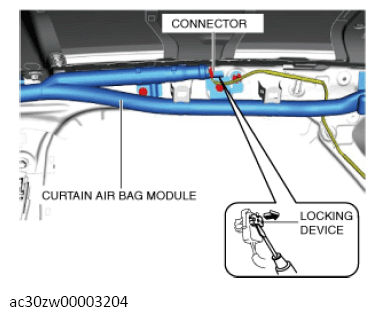

Using a flathead screwdriver, lift the locking device carefully, however do not remove it.

Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.
Remove bolts A.

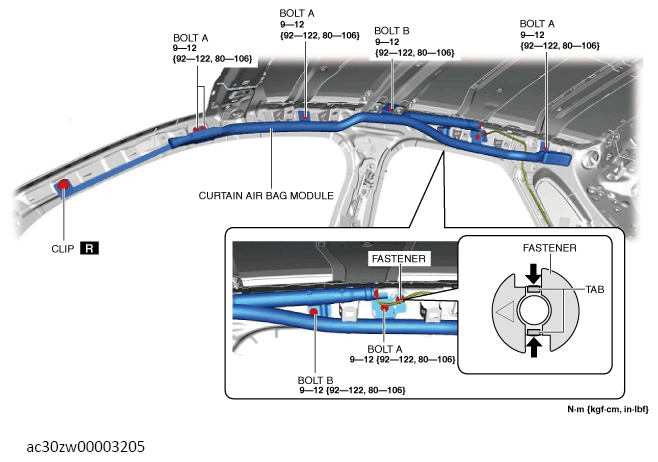

Fig 1: Curtain Air Bag Module Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove bolts B.
Remove the clip. (See CLIP REMOVAL NOTE .)
Press the tabs of the fastener in the directions of the arrows shown in the illustration and remove the fastener.

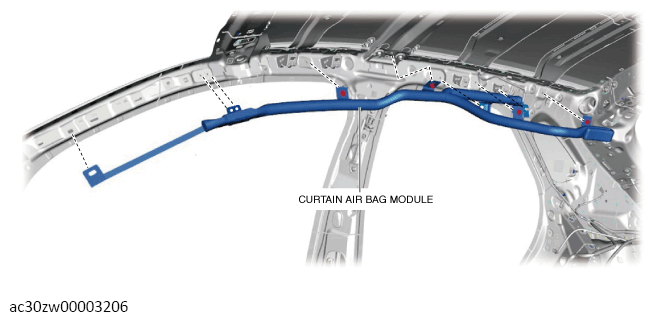

Remove the curtain air bag module.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Switch the ignition ON (engine off or on).
Verify that the air bag/seat belt pre-tensioner system warning light illuminates for approx. 6 s and turns off.
- If the air bag/seat belt pre-tensioner system warning light does not operate normally, refer to the onboard diagnostic system (air bag system) and perform inspection of the system. (See DTC INSPECTION .)
